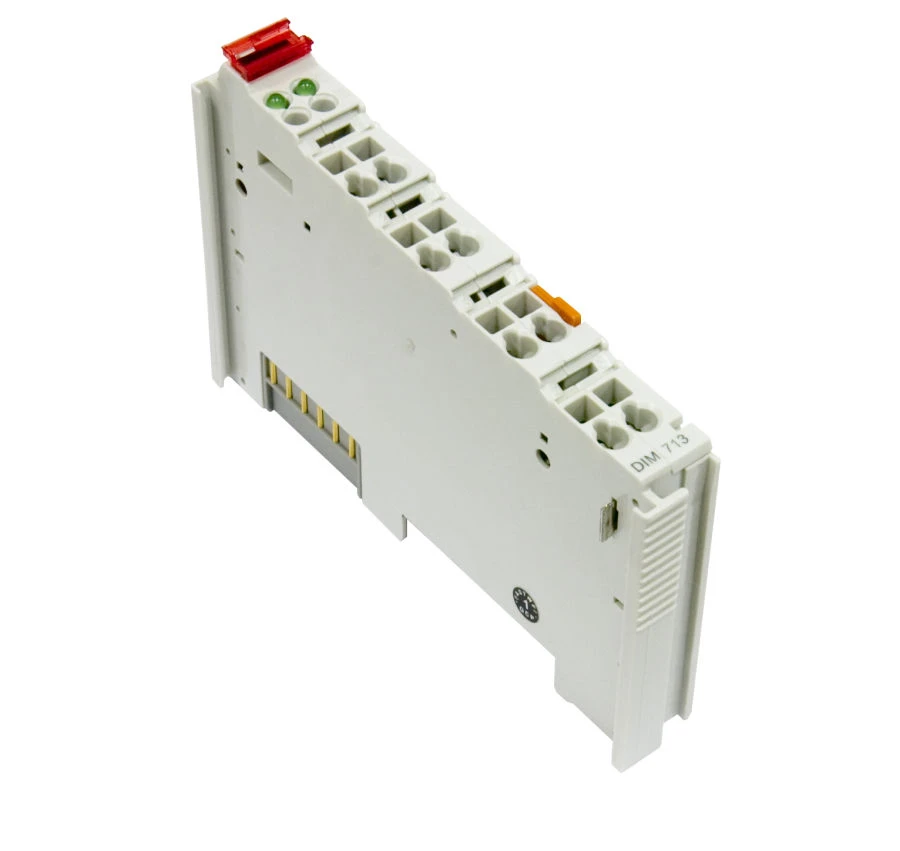

Discrete Output Module for Load Switching at 24V DC DIM71101-C1

Available for Import

Discrete output module DIM71101-C1 FAPI.421459.711-01

Advanced Computing Devices

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Dual-channel relay output module DIM71201-C1 (FAPI.421459.712-01) Module of two-channel relay output DIM71301-C1 (FAPI.421459.713-01) Digital output module DIM71901-C1 (FAPI.421459.719-01) Digital output module DIM76301-C1 (FAPI.421459.763-01) Digital output module DIM71801-C1 (FAPI.421459.718-01)

Description

The module is designed to switch loads to the common (minus) wire of the field supply at a field supply voltage of 24 VDC. It has four discrete output channels with a maximum load current of 2A and short-circuit protection. Each channel can also be used to generate a PWM signal with a repetition rate of up to 1000 Hz, a minimum pulse (half-wave) duration of 400 µs and a half-wave sampling weight of 12.5 µs or 50 µs, which can be set when parameterising the module. The module has 4 LED indicators for displaying the logic state of each channel and 4 for displaying error signs by channels.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
