Disk Varistor 485V 1.2kA (8/20) for Effective Surge Protection

Manufacturer:HAKEL OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

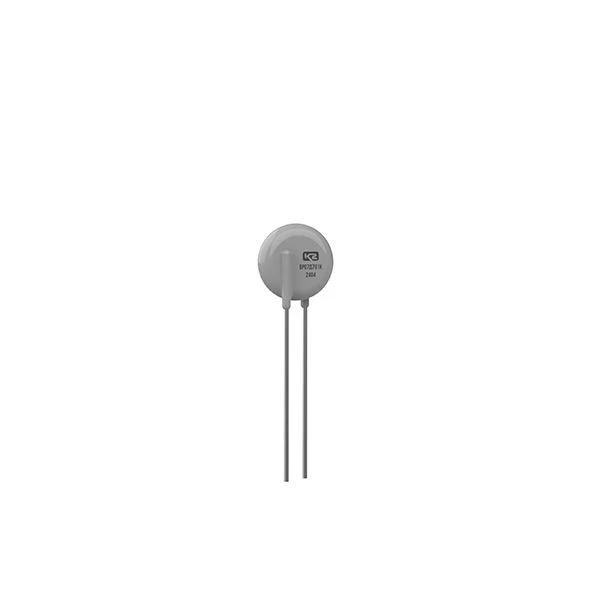

VR07D781K - varistor of KVS series, 485 V, 1.2 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, uninsulated.

Maximum disk thickness

6.5 mm

Maximum disk diameter

9 mm

Operating temperature range

-60...85 °C

Maximum pulse energy (2 ms)

32.8

Permissible amplitude of a single current pulse (8/20 µs)

1200 A

Maximum continuous operating voltage

640 V

Maximum AC operating voltage

485 V

Classification rated voltage at 1 mA current

780 V
