DPT-E Suspension Cable for Power Transmission and Communication Applications

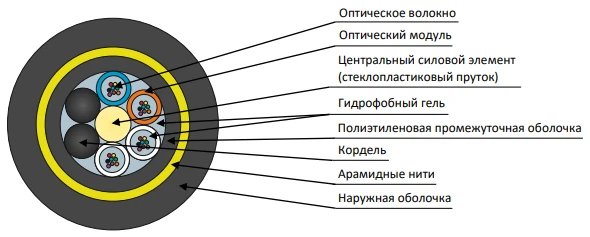

For suspension: between the supports of overhead power lines, contact network and autoblocking of railways; between the supports of lighting, communication supports, buildings and structures; For laying in cable ducts, pipes, trays, blocks, tunnels, collectors, bridges and overpasses. Inside buildings. The cable contains a core of modular construction with a central power element made of dielectric rod, around which optical modules with freely laid fibres are twisted.

The free space in the optical modules and in the cable core is filled with hydrophobic gel. An intermediate sheath made of polyethylene is overlaid on the core. Aramid filaments are spirally applied on the intermediate sheath.

A sheath of tracking-resistant polyethylene is placed on top of the filaments. Fully dielectric; UV resistant.
