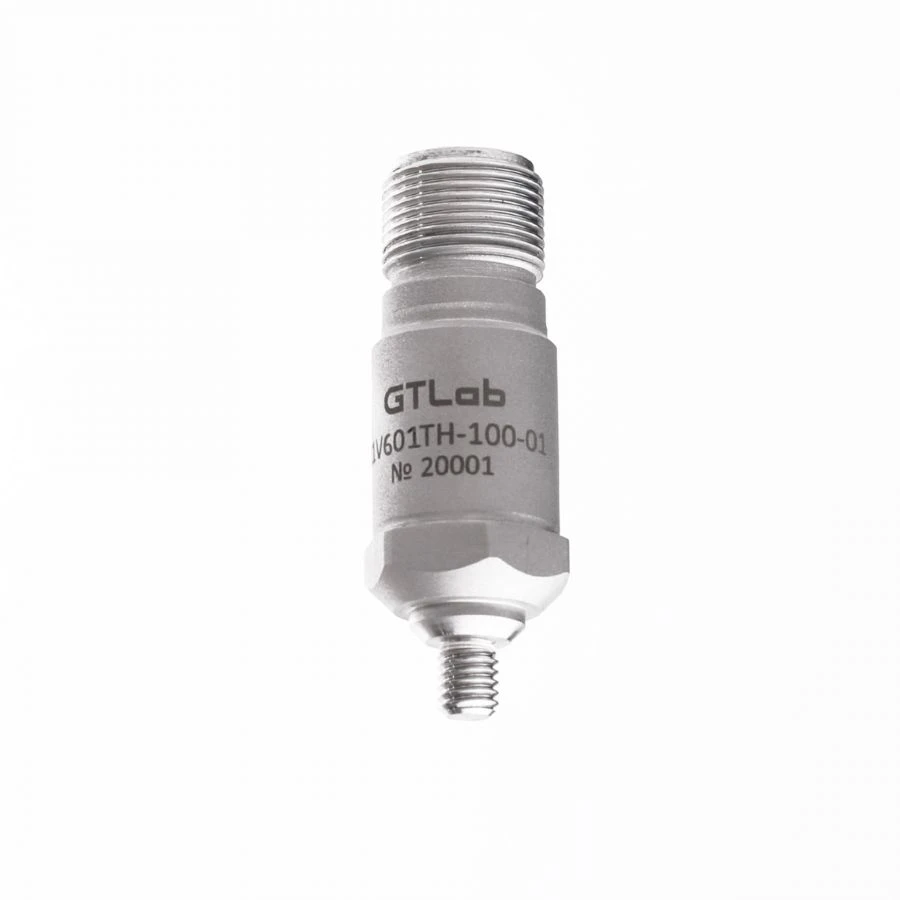

Dual-Technology Impact and Vibration Accelerometer 1V601TH-100-01 for Accurate Measurements

Movement Measurement Devices

Manufacturer:GTLAB LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The 1V601 shock pulse sensors support dual measurement technology. They are designed for simultaneous measurements of vibration acceleration in the range of operating frequencies and shock acceleration (shock pulses) at the frequency of the setting resonance.

Specifications

Conversion factor (± 10%)

10 mV/(m-s-2)

Relative transverse conversion ratio

< 5 %

Maximum value of the measured acceleration amplitude

± 600 m/s2

Shock pulse measurement range

-20 ... +75 dB

Operating temperature range

-55 ... +125 °?

Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons

1 ... 10 000 Hz 2 ... 6 000 Hz 4 ... 5 000 Hz

Natural frequency in fixed state

28 kHz

Noise level, RMS (1 Hz ÷ 10 kHz)

< 0.002 m/s2

Output impedance

< 100 ohms

Power supply: ? voltage ? current

+ (18 ... 30) V 2 ... 20 mA

DC output voltage level

8 ... 13 ?

Coefficient of influence of ambient temperature

± 0,2 %/ °?

Time to establish operating mode

2 ?

Housing material

stainless steel

Explosion protection

OExiaIICT4

Degree of protection against external influences

IP67

Weight (without cable)

50 ?

Thread size A

Fastening torque

4 H-m

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
