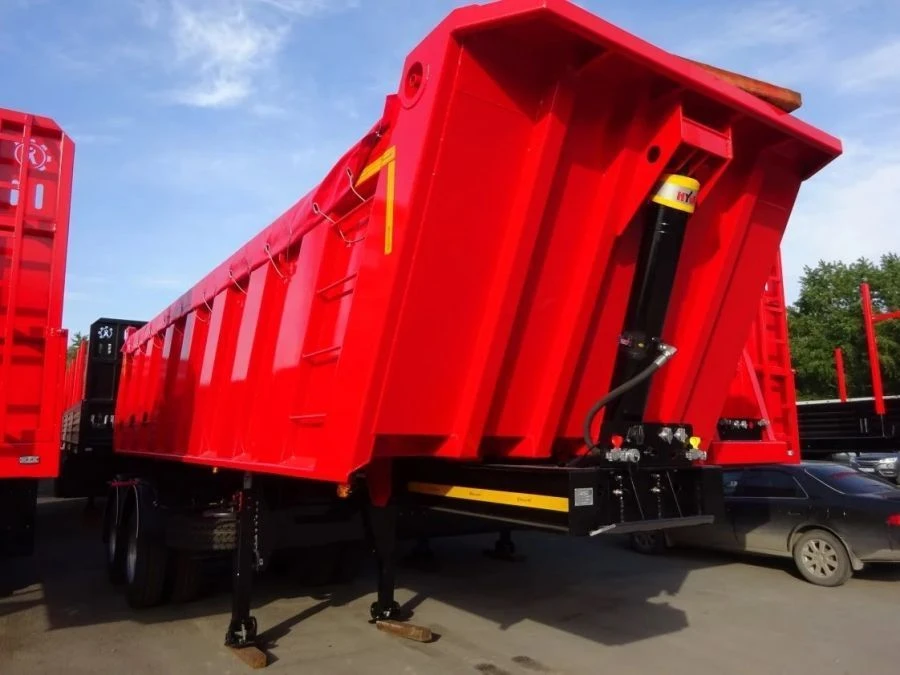

Dump Semi-Trailer 95100A for Efficient Bulk Cargo Transport

Heavy Duty Trailers

Manufacturer:NOVOSIBARZ OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

??????????-???????? 95100?Semi-trailer - tipper 95100C

Description

Designed for transporting and unloading bulk and bulk cargoes on roads of all categories of the general road network. Technically permissible maximum weight of vehicles 26 -32 tonnes. Loading space - all-metal tipper body of box type, with backward unloading.

Coupling kingpin with diameter of 50.8 mm or 88.9 mm. Axles 9 tonnes manufactured by "Plant" Ltd. or Axle unit 9 tonnes.

BPV-Ost Ltd. Tyres 385/55 R22,5; 385/65 R22,5 manufactured by JSC "Kordiant"/ LLC "Nizhnekamsk Tyre Plant CMK". Wheel discs manufactured by OOO "AccuRide Wheels Russia" or PJSC "ChKPZ".

Receiver manufactured by OOO TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta". Floor level crane manufactured by VBK Vostok Ltd.

Tractors should be completed with a hydraulic pump, distributor, safety valve, filter, oil tank and hydraulic leads for connecting the hydraulic system of the semi-trailer.

Specifications

Type of semi-trailer

Dump truck

Maximum height

4000 mm

Width

2550 mm

Maximum length

12000 mm

Axle load capacity

8...10 t

Base machine type

truck

Rear track

2000...2050 mm

Front track

2000...2050 mm

Base

3100...8300+1300...2050

Technically permissible maximum load on the coupling ball bar

9807-11768

Number of axles

2 pcs

Vehicle kerb weight

5500...15000 kg

Technically permissible maximum mass of the vehicle

26000...32000 kg

Scope of application

Designed for transportation and unloading of loose and bulk cargoes on roads of all categories of the general road network.

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Warranty period

B1/B8 2100/900 MHz

Ergonomic parameters

Paint and varnish coatings used for the exterior surfaces of semi-trailers-dumpers, allow the possibility of underpainting or repainting them with natural drying paints; the force required to lift the spare wheel - not more than 500 N (50 kgf). When using

Climatic version

UHL

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
