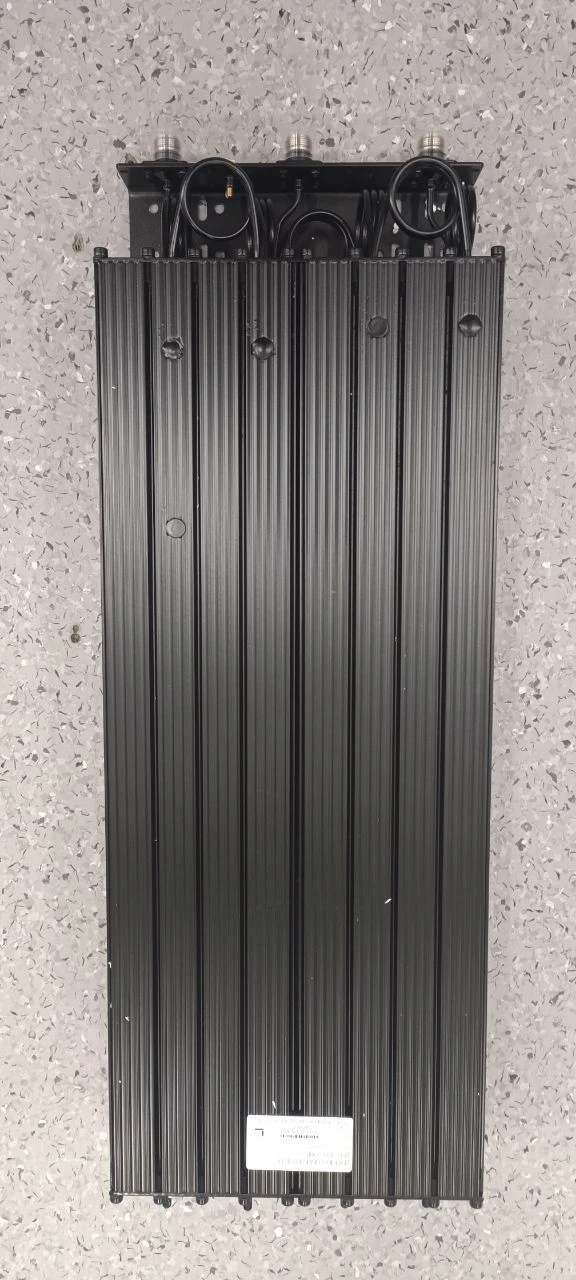

Duplex Band-Stop Filter DF-160/R6K for Enhanced Antenna Performance

Broadcast Equipment Parts

Manufacturer: Radio Communication Laboratory LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Duplex band-rejector filter DF-160/R6K KD ALVR.468592.002 is manufactured in accordance with the requirements of technical specifications 65 7700 5-003-62837180-09 TU, it is designed for application in antenna-feeder paths of stationary and transportable (locomotive) receiving and transmitting devices in order to increase the selectivity of their receivers, to reduce the influence of out-of-band interference, to eliminate the effect of sensitivity reduction and blocking by high-frequency (HF) signals from nearby radio transmitters, as well as to reduce the probability of intermodulation interference. By including DPRF in the output circuits of transmitters, the level of out-of-band radiation and the probability of intermodulation products is reduced.

Specifications

Equipment

Filter, passport, packaging

Output power

150 W

Type

Дуплексный полосно-режекторные фильтр

Connector type

Three N-type sockets

Frequency difference between channel bandwidths

1.0-2.0 MHz; 2.0-4.0 MHz

Frequency range

150...156

Direct losses in channels

At a difference of 1-2 MHz - 1,7 dB; at a difference of 2-4 MHz - 1,2 dB.

Bandwidth

At 1-2 MHz spread - 0,2...0,3 MHz; at 2-4 MHz spread - 0,3...0,7 MHz.

Signal suppression in the adjacent channel

Passing power

150 W

Wave impedance

SBVVBG ohm

VSWR

Not more than 1.5

Operating temperature range

From -40 to +60 degrees Celsius

Dimensions

(WxWxD) 55x252x630

Weight

5 kg

Resonator diagonal

Number of resonators

6 coaxial

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
