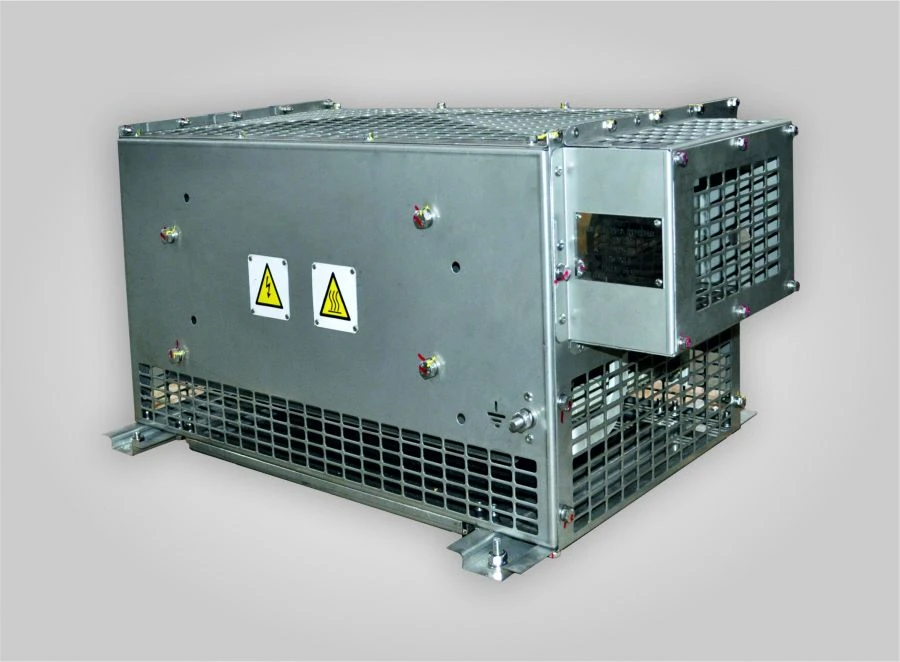

Dynamic Braking Resistor Block BRT-1.9/20U1 for Tram Electric Drives

Resistors & Varistors

Manufacturer: PZT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Brake resistor block BRT-1,9/20U1 is a part of automated traction electric drive of tram car. The unit provides the possibility of damping dynamic overvoltages of the contact network, as well as energy discharge during electrodynamic braking in the absence of consumers in the contact network, which should receive the recovered energy.

Specifications

Nominal resistance of the resistor

1.9 ohm

Reduced limit temperature of the medium

45 °C

Higher limit temperature of the medium

40 °C

Dimensions

400 mm

Number of resistors in the block

1 pcs

Rated power dissipation of the unit

20000 W

Resistance

1.9 ohm

Designation

Block of braking resistors BRT-1.9/20U1

Accuracy

2 %
