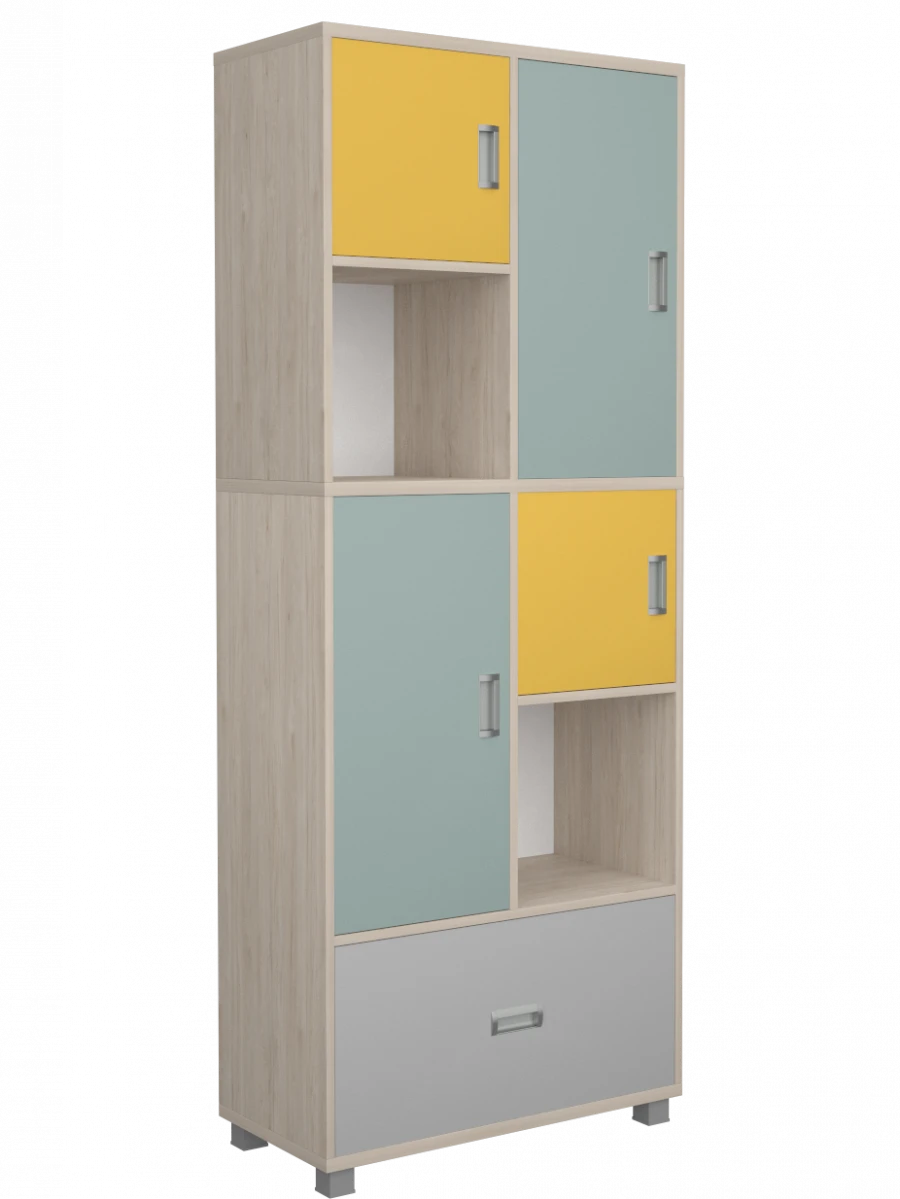

Educational Resource Cabinet for Efficient Learning Organization - Fr2.3.1

Consists of upper and lower modules. Bottom module 724x362x1140mm: Top 724x362, LDFB 22m. PVC edging 2mm front, left, right and back 0.4mm.

The slot for the back wall is located along the back. Fastened to the sides with eccentric ties and screws.Base 724x362, LDPE 22mm. Sides 1046x360, 2 pcs, 16 mm LDF.

PVC edging on the front and back 0,4 mm. There are holes for fixing the door using 6.3x13 Euroscrews, holes for mounting shelf holders and marks for fixing the rails. Rack 692x360, chipboard 16mm.Have holes for fixing the door, shelf.

And marks for fixing the guides.Tie rod 692x360, LDFP 16mm. Upper module 724x362x708mm - LDF 16mm, PVC edging.Back wall 702x348 3pcs, lacquered one-sided CDF, thickness 3mm, front side white, installed in the groove. Plastic supports have height adjustment, rectangular shape.

Height 52mm. Complete with drawer and doors. Metal handle of mortise type with plastic plugs.
