Available for Import

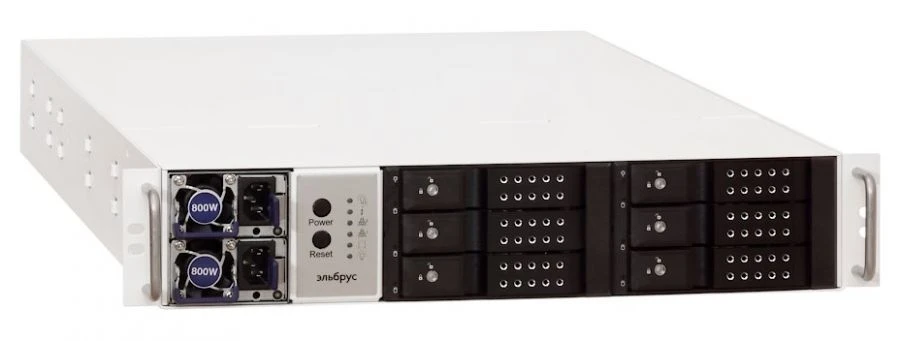

Elbrus-8SV Server Platform 2U for Efficient Computing in 19" Racks
Manufacturer:
MCST OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Server platform based on 2 Elbrus-8SV processors allows you to create computing nodes of medium performance level in a 2U case for installation in a standard 19? rack.
Typical applications:
- infrastructure server: files, mail, domain controller;
- Web server or entry-level application server.
Typical applications:
- infrastructure server: files, mail, domain controller;
- Web server or entry-level application server.
Specifications
Chipset
2 central processors Elbrus-8SV; 2 peripheral controllers KPI-2
RAM
8 DDR4-2400 ECC (DIMM 288-pin) slots, up to 256GB (only DDR4 ECC Registered modules are supported)).
Long-term memory
15 SATA 3.0 ports on motherboard; 1 M.2 SATA slot (type M, size 2280-D5) for SSDs; only SATA AHCI drives supported
Video system
Integrated 2D graphics as part of the control controller
Audio system
integrated HD Audio controller with digital input-output; PC Speaker can be connected
External interfaces
2 Ethernet 1000Base-T network ports with RJ45 connectors; 2 USB 2.0 peripheral ports with A-type connectors; 1 VGA video port with DE-15 connector; 2 USB 2.0 peripheral ports on 1 10-pin comb; 1 RS-232 console port on 10-pin comb.
Internal interfaces
1 SPI bus port on 8-pin comb for ROM update; 1 I2C bus port on 10-pin comb for writing FRUID; 1 JTAG debug port (CPU, KPI-2) on 10-pin comb
Expansion slots
7 PCI Express 2.0 x16 slots (4×8 + 1×4 + 2×1)
Dimensions
19?/2U case, microATX motherboard dimensions 482.6×88.0×740.0 mm, weight 23 kg
Power system
Power supply from AC mains 220 V ± 10 %, 50 Hz ± 2 %; 2 power modules with capacity 800 W, consumption up to 800 W
Cooling system
3 80×38 mm fans in the middle of the main compartment 2 40×28 mm fans in each power supply unit
Architecture
Elbrus
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
