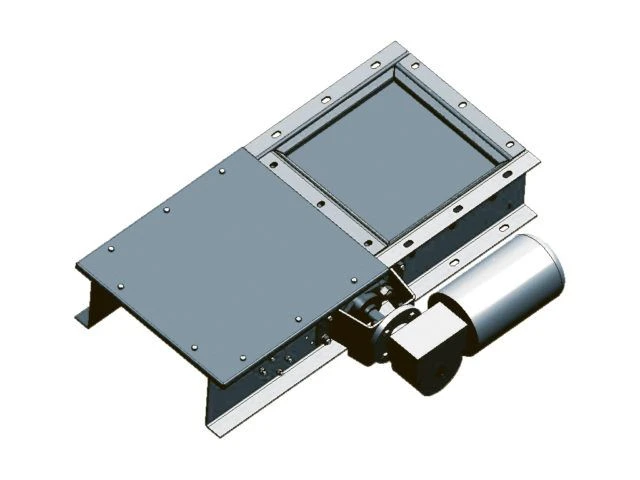

Electric Actuated Gates for Grain Flow Control - Model Z (Z 190x765, Z 200x200, Z 305x305SK, Z 350x350SK, Z 405x405SK)

Gates with electric drive Z (Z 190x765, Z 200x200, Z 305x305SK, Z 305x765SK, Z 350x350SK, Z 350x765SK, Z 405x405SK, Z 405x605SK, Z 405x765SK, Z 450x450A, Z 450x765SK, Z 470x765, Z 500x500, Z 710x220, Z 1042x500) are designed for use as a shut-off organ (opening and closing) at the outlet of bulk solids from hoppers, systems of gravity pipes or conveying installations at explosion and fire hazardous production facilities of storage, processing and use of vegetable raw materials. It consists of: housing, gate, toothed rack, shaft with pinion, electric drive (gear motor), limit switches. When voltage is applied to the electric motor, the gearmotor rotates the axle with the pinion, mounted on rolling bearings on the gate valve body. The pinion ensures the progressive movement of the toothed rack on the gate connected to it. When the gate reaches one of the extreme positions, limit switches mounted on the body of the gate, disconnect power from the gearmotor. Use...
