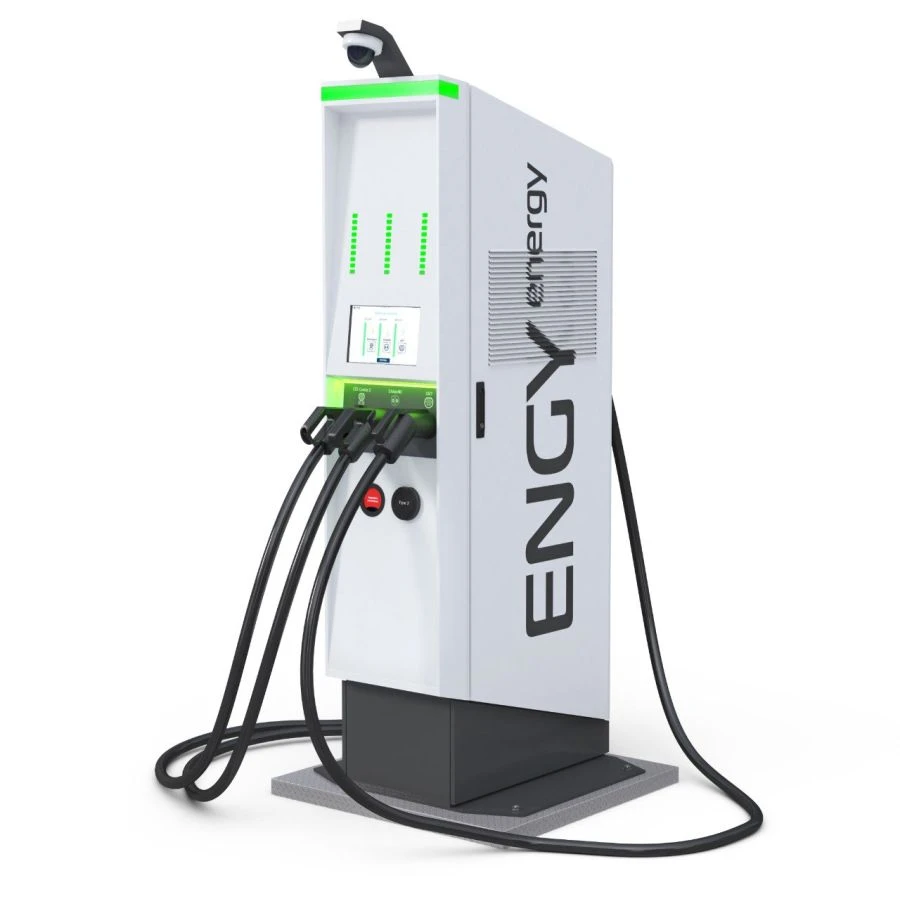

Electric Vehicle Charging Station CS9.2 for Simultaneous Charging of Up to 4 Cars

Possible simultaneous charging of up to 4 electric vehicles. High safety: protection against overcurrent, undervoltage, residual current, overvoltage protection, protection against leakage, short circuit, overheating, built-in fire extinguishing system. Main characteristics: station power to choose from 60 to 160 kW from the switching range: 60/120 (when installing charging modules 30 kW), 80/160 (when installing charging modules 40 kW) direct current (DC): up to 60 kW (3 connectors to choose from: CCSCombo2, CHAdeMO, GB/T); alternating current (AC): up to 44 kW (1connector to choose from: Type2 socket/GB/T-AC socket); degrees of protection IP 55 and IK 10 charging protocols IEC 61851-23 PLC (CCS Combo 2); CAN 2.0 (CHAdeMo); GBT 20234/27930; ISO 15118 overall dimensions (H x W x D): 2100 x 520 x 850 mm; operating mode: temperature from -30 C to +45 C, humidity from 5% to 95%
