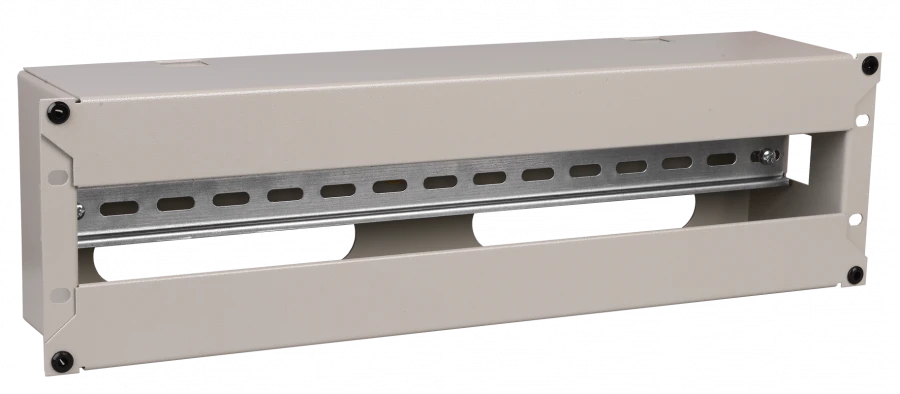

Electrical Distribution Panel EDP35-3U22M ITK with DIN Rail

Available for Import

Electrical Distribution Panel EDP35-3U22M ITK for Modular Equipment Installation

Telecom Equipment Parts

Manufacturer: IEK Holding LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Electrical distribution panel with DIN-rail is used for installation in 19"; cabinets and racks of modular equipment and connecting to it electrical cables with subsequent distribution of operating voltage to consumers.

The panel consists of a housing, a front removable cover and a DIN rail. On the back side there are windows for cable entry into the panel. The electrical distribution panel is mounted on vertical mounting profiles using screw-washer-nut fasteners. On the housing there is a possibility to organise earthing of the product.

Specifications

Type of product according to PP RF 616

Communication equipment parts and accessories

Color

gray

Length

105.5 mm

Width

482.6 mm

Height

127 mm
