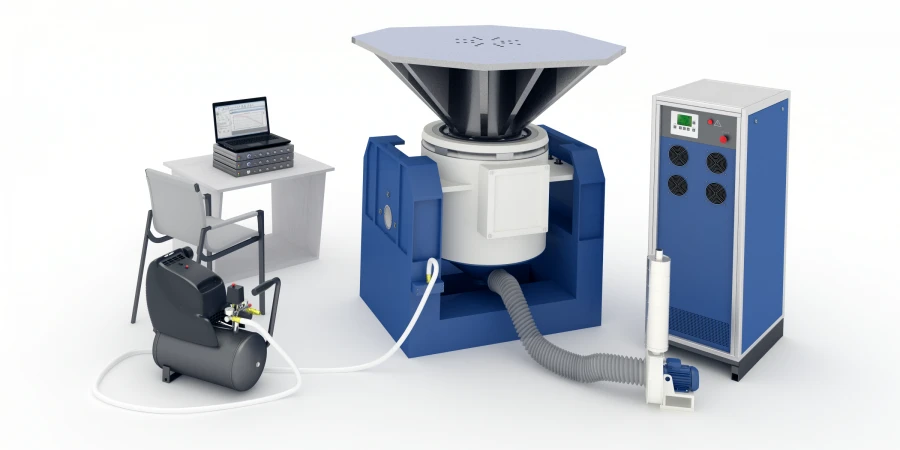

Electrodynamic Vibration Testing System VSV-225VD-340 for Sinusoidal and Random Vibrations

Testing vibration electrodynamic long stroke water-cooled test rig. Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration. Design features Table diameter 340 mm, frequency range 5-2500 Hz, displacement (amplitude) at zero load not less than 25 mm, acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 25 kN, mass (maximum) load 300 kg. Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
