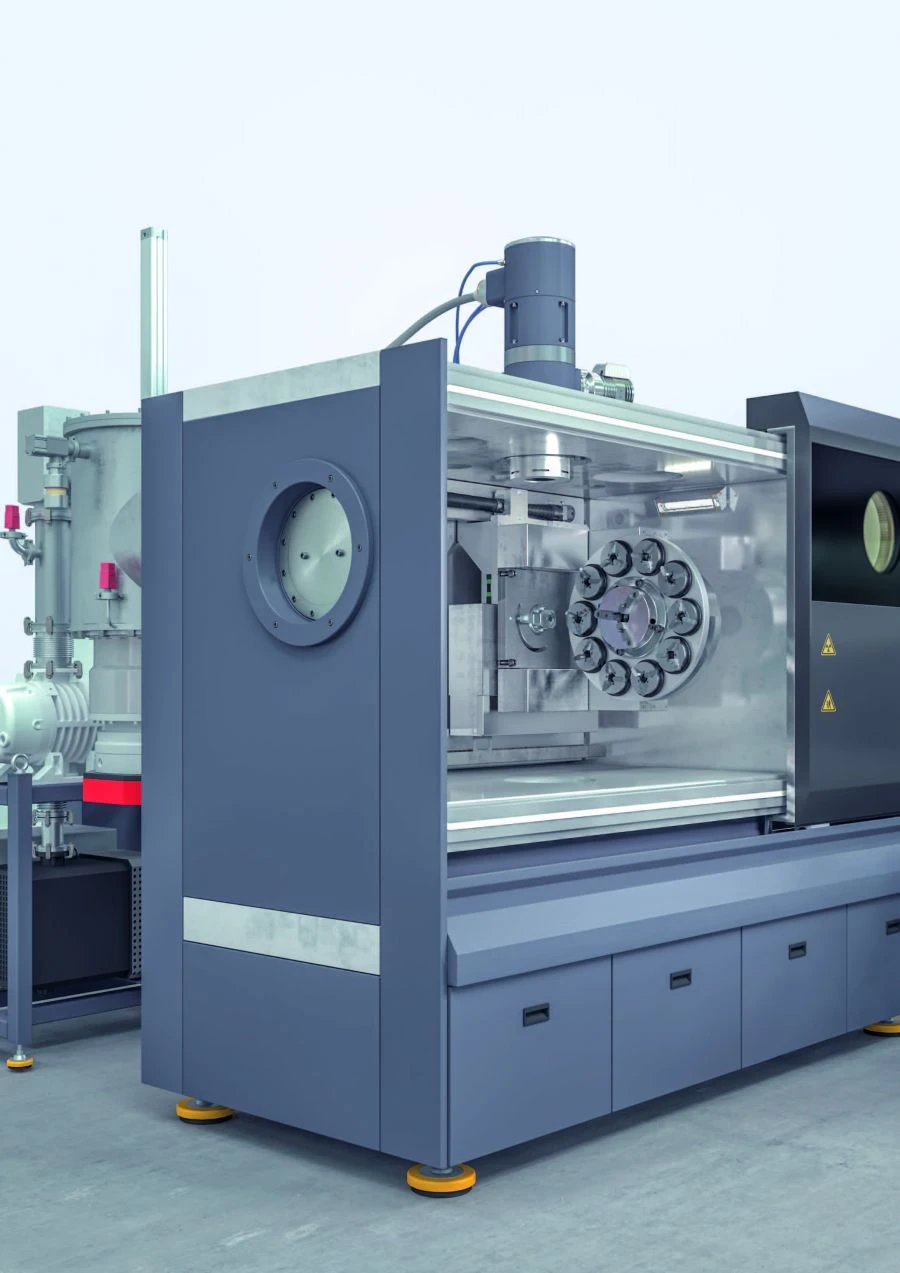

Electronic Beam Welding Machine TETA 6E800M2 for Precision Welding Applications
Manufacturer:
TETA LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The unit is used for welding, brazing and heat treatment of small parts. It has a wide range of use in industry
THE MACHINE IS EQUIPPED WITH:
- Kinematic system (manipulator) for welding single/multiple (up to 10 parts) workpieces in one work cycle;
- Optical video surveillance system co-axial to the beam;
- Reflected electron observation system;
- Automatic pointing and focusing;
- Electron-beam gun with direct/spark cathode or plasma cathode;
- Vacuum pumps from the world's leading manufacturers.
THE MACHINE IS EQUIPPED WITH:
- Kinematic system (manipulator) for welding single/multiple (up to 10 parts) workpieces in one work cycle;
- Optical video surveillance system co-axial to the beam;
- Reflected electron observation system;
- Automatic pointing and focusing;
- Electron-beam gun with direct/spark cathode or plasma cathode;
- Vacuum pumps from the world's leading manufacturers.
Specifications
Type of product according to PP RF 616
High-vacuum electron-beam installations
Power
6 kW
Internal dimensions of the vacuum chamber
800×800×1460 mm
Accelerating voltage
60 kV
Maximum beam current
100 mA
Beam current stability
0.1 mA
Beam deflection angle
±7°
Cathode type
Direct filament, Indirect filament
Pumping time to operating vacuum
2 - 10 minutes
Pump types
Turbomolecular + Rotor Plate
Manipulator, number of axles
4 pcs
Movement in X, Y, Z axes
800, 250 mm
Travel speed in X, Y, Z axes
0.1 - 40 mm/sec
Faceplate diameter
160 mm
Tilt angle of the desktop
0 - 90°
Faceplate aperture
40 mm
Rotation speed
0.1 - 60 rpm
Load capacity of the manipulator
SBVVBG kg
Cooling system
Liquid, built-in
Pneumatic system
built-in
Power supply voltage
3 phases, 380 V, 50 (60) Hz
Weight
2300 kg
Dimensions
4000x3600 mm
Mark
THETA 6E800M2
Type
Electron beam welding unit
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
