Embedded Processor Module Salyut-EL24PM2 for High-Performance Embedded Systems

Advanced Computing Devices

Manufacturer:ELVIS OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

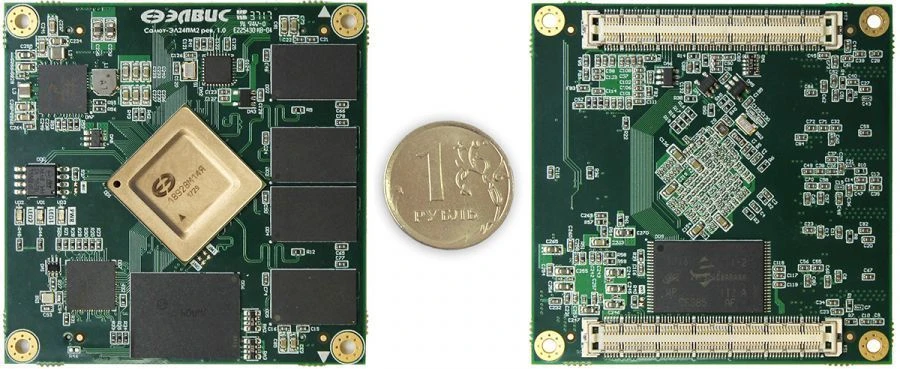

The processor module Salyut-EL24PM2 is designed for use in end products as an embedded processor module. It is implemented on the basis of 1892VM14Ya crystal system of JSC NPC "ELVIS". It allows to simplify considerably the development of devices based on 1892VM14Ya processor, providing a ready hardware solution with wide functional capabilities and a large set of I/O interfaces.

1892VM14Ya processor: 2x-core Cortex-A9 CPU, 816MHz; 2x-core DSP ELcore-30M, 672MHz; video codec VPU H.264 Full HD (1920x1080) 30 fps, Mali-300 GPU, DDR3L, 2 GB, NAND Flash, 4 GB; eMMC 32 GB; SPI Flash 4 MB. USB 2.0 OTG; Ethernet 10/100/1000; SpaceWire; SDMMC. MIPI CSI2; TTL 12 bit.

MIPI DSI, TTL RGB 24 bit. UART; I2C ; SPI; I2S; MFBSP; GPIO; PWM. Power supply: 3.3V.

Dimensions: 60x60 mm.

Specifications

Dimensions

60 mm

Nutrition

3.3 V

ROM (FLASH)

ROM (eMMC)

RAM (DDR3)

DSP clock frequency

672

CPU clock frequency

816
