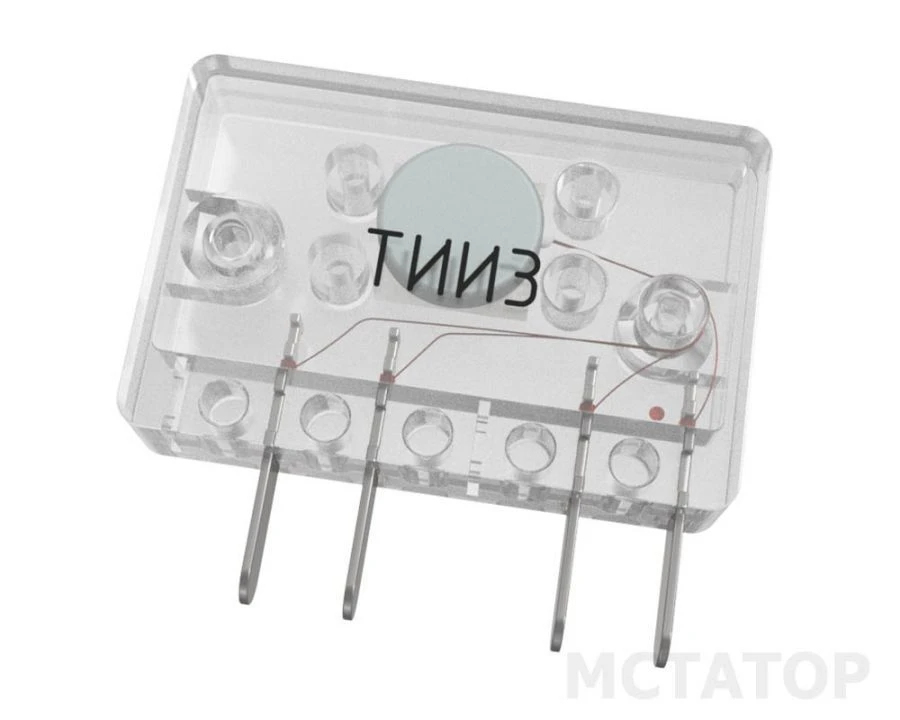

Encapsulated Pulse Transformers TII3 for Hybrid Systems and Applications

Electric Transformers

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

TII3 type pulse encapsulated transformers are designed for operation in hybrid-film circuits and in circuits with printed and volume mounting with operating voltage up to 24V and product of pulse duration on input voltage from 0,1 to 50,0 ?s?V. Quality category "VP" and "OS".

Specifications

Capacitance between the primary and each of the secondary windings

10 to 170(×10^-12)

Electrical insulation strength: DC voltage

150 V

Insulation resistance, not less

500 (×10^6) ohm

Magnetizing current, not more

10 (×10^-3) A

Scattering inductance, not more

0.4 to 60(×10^-6)

Product of pulse duration by input pulse voltage

0.1 to 50.0(×10^-6)

Primary inductance

0.01 to 5(×10^-3)
