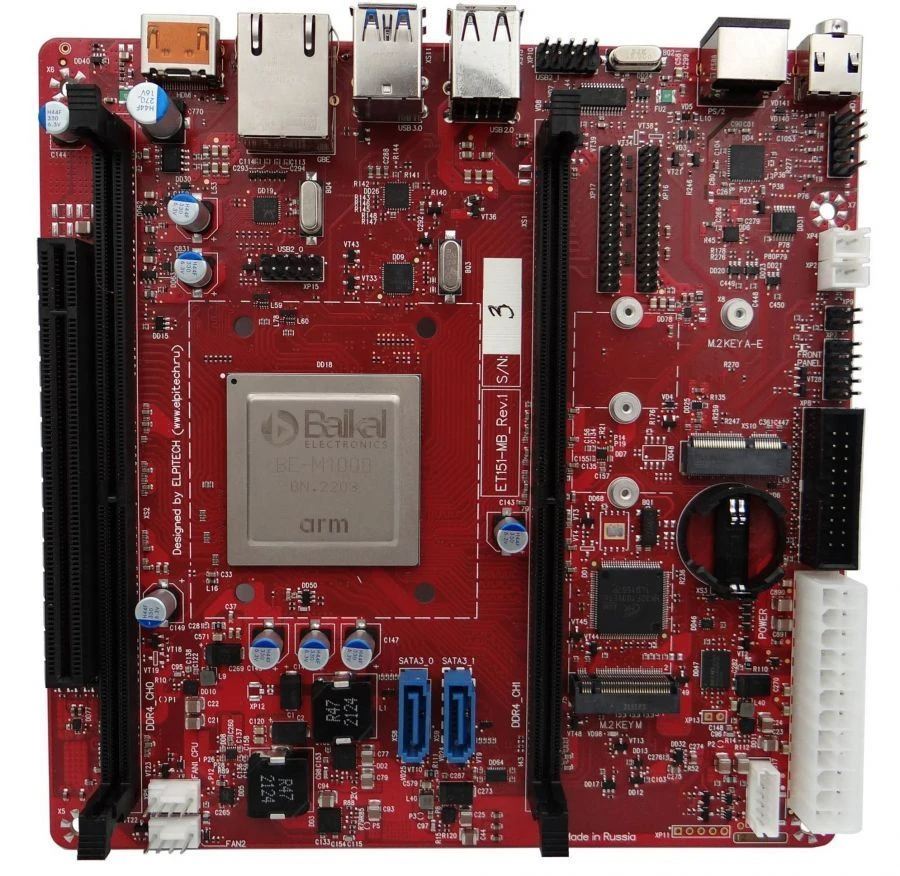

ET151-MB Mini-ITX Motherboard for Baikal Processors - Ideal for Compact PCs

Mounted Circuit Boards

Manufacturer: ELPITECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The ET151-MB motherboard of Mini-ITX form factor is designed to work with Baikal (BE-M1000) processors and is installed in monoblocks, small-format personal computers and automated workstations.

Specifications

Chipset

SNK Baikal-M

CPU connector

Processor integrated into motherboard

Type of RAM

DDR4 2133 (including ECC)

Processor architecture

ARM Cortex A57

Maximum RAM capacity

Number of memory slots

2 pcs

Expansion slots

M.2 M key (PCIe 3.0 x 4) for NVME or SATA SSD , M.2 A – E key, PCIe 3.0 x16 slot (x8 lane)

Availability of video connectors

mini-ITX

Number of processor cores

8 pcs

Processor

Baikal BE-M1000

Internal connectors

2 × SATA 3.0 6 Gb/s, stereo speaker connectors, 2 × 4-pin fan connectors with PWM control, RTC battery connector, RTC 24-pin power connector.

Expansion slots

M.2 M key (PCIe 3.0 x 4) for NVME or SATA SSD, PCIe 3.0 x16 slot (x8 lane)

Maximum RAM capacity

Up to 64 GB (up to 2 DIMM modules)

RAM TYPE

DDR4 2133 (including ECC)

Supported OS

Alt, RED OS, Astra Linux

External inputs/outputs on the rear panel

1 × HDMI out, 4 × USB 2.0, 1 × RJ45 1000BASE-T, Headset jack, PS/2, Display Port

Front panel inputs/outputs

HD Audio connector, Front panel connector (buttons, LEDs), 2 × USB 2.0, 2 × USB 3.0

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
