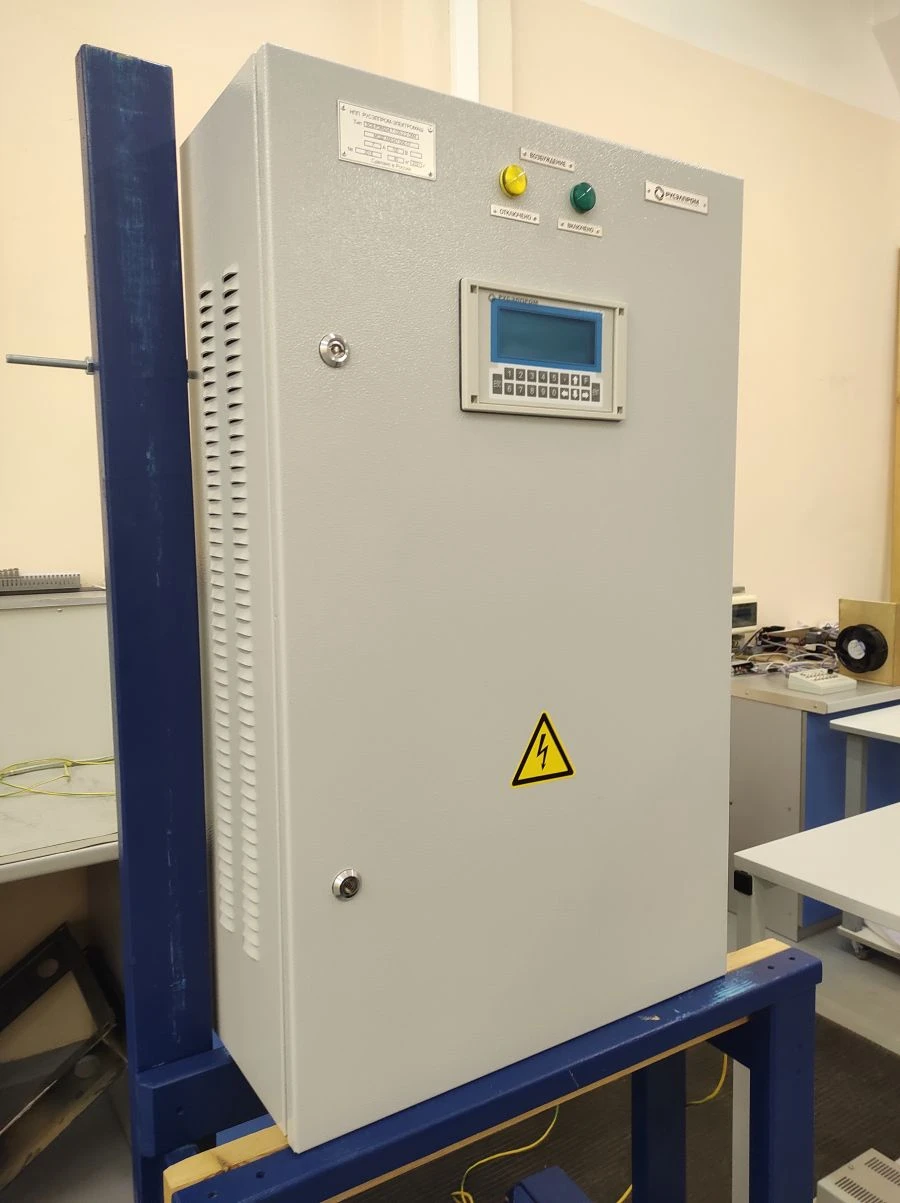

Excitation Control System BSV-REM294 for Synchronous Generator Regulation

Electrical Gear Parts

Manufacturer: RUSELPROM-ELECTROMASH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The excitation control system is designed for supplying the excitation winding of the exciter exciter of the synchronous generator type SGDM with regulated rectified current.

Specifications

Assignment

Supply of excitation winding of synchronous generator exciter exciter type SGDM by regulated rectified current

Designation

BSV-RAM294

Length

600 mm

Width

260 mm

Height

1080 mm

Rated current

5...20 A

Nominal voltage

50...150 V

Multiplicity of excitation current boosting

2.0 o.u.

Mains voltage frequency

SBVVBG

Accuracy of generator voltage maintenance

±2,5

Rated voltage of generator stator stator voltage measurement circuits (effective value)

100...400 V

Rated current of the generator stator current measuring circuit (effective value)

5 A

Power consumption by voltage measurement circuits per phase

Not more than 0,1VA

Power consumption of current measuring circuits per phase

Not more than 0,1VA

Rated voltage of DC circuit supply

24 V

Power consumption on DC circuits

120 W

Types of communication channels with the upper level control system

Ethernet RS-485

Power converter

?????????????

Power converter supply voltage from sub exciter

350 V

Number of control channels

1 pcs

Cooling

natural air

Average noise level at a distance of 1 m from the equipment circuit

Full average service life from the date of manufacture

20 year

Average MTBF

18000

Climatic execution according to GOST 15150-69

OM4

Operating conditions

Ambient temperature from 0 to 50°C. Relative humidity of air (95±3)% at temperature (35±2)°C. Operation at vibrations with frequencies from 2 to 100 Hz (at frequencies from 2 to 13,2 Hz - with displacement amplitude ±1 mm, at frequencies from 13,2 to 100 H

Protection degree of the shell according to GOST 14254-2015

IP44

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
