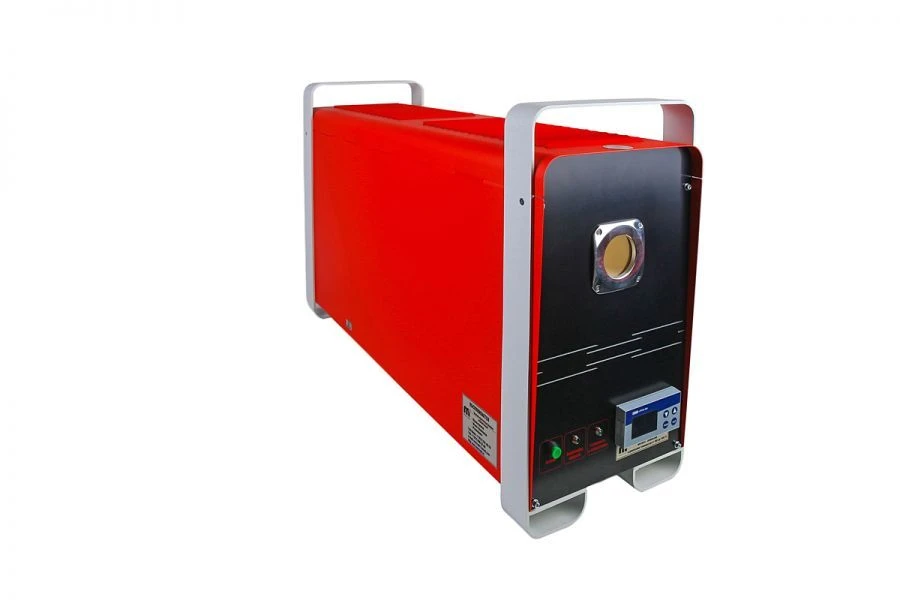

Exemplary Black Body Radiator "Electra+" for Reproducing Radiation Temperatures

Measurement and Control Devices

Manufacturer: METROPIR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Exemplary radiator absolutely black body "Elektra" Exemplary radiator absolutely black body "Medea" Exemplary radiator absolutely black body "Helios"

Description

The emitter is designed to reproduce the radiation temperature in the range from 300 to 1250 degrees Celsius. The action of the device is based on the laws of Stefan - Boltzmann and Planck, linking the temperature of a black body and the brightness of its radiation. The value of the cavity temperature is set by means of a regulator having an independent indicator and a contact temperature sensor built into the cavity. An electric heater is used to heat the radiating cavity. It is produced in two discharges, in monoblock and separate version.

Specifications

Transmitter weight

21 kg

Transmitter height

488 mm

Transmitter width

254 mm

Transmitter length

800 mm

Transmitter temperature drift over 15 minutes

+/-0,2 °C

Effective degree of blackness of the transmitter

0,996

Depth of the radiating cavity

520 mm

Diameter of the radiating cavity

SBVVBG mm

Instability in maintaining the transmitter's temperature

+/-0,2 °C

Confidence limits of the error at the confidence level of 0.95 for transmitters of the 2P version

+/-(1.0+0.0046xtvos) °C

Confidence limits of the error at confidence level 0.95 for transmitters of 1P version

+/-(0.6+0.0023xtvos) °C

Reproducible temperature range

300...1250 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
