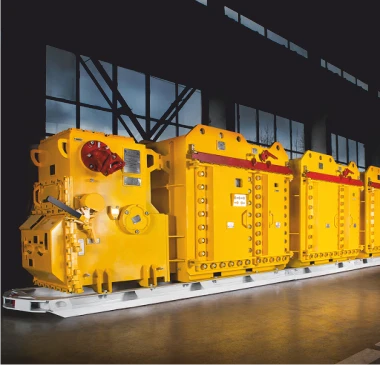

Explosion-Proof Capacitor Installation for Mines - UKRV-UHL5 (Safety in Hazardous Environments)

The UKRV is designed for use in dust and gas hazardous mines. UKRV has explosion-protected execution with type of explosion protection "flameproof enclosure" according to GOST 60079.1-2011 and execution of intrinsically safe remote control circuits with type of explosion protection "intrinsically safe electric circuit" according to GOST 31610.11-2014 with explosion protection marking RV Exd [ia Ma] I Mb X according to GOST 31610.0-2014. The condenser mine explosion-proof condenser unit contains a device for attachment to a suspended monorail, it can be equipped with wheel pairs for travelling on rails.

No additional control cells are required to be installed for RBMV. VHFM is designed for operation in the following conditions: -nominal value of climatic factors: from -10 °? to +35 °?; -dustiness of the environment not more than 1000 mg/m3; -relative humidity of the environment up to 98 % at temperature +35 °?.

CPM INSTALLATION IN EXPLOSION-PROOF VERSION The reactive power must be compensated as close as possible...
