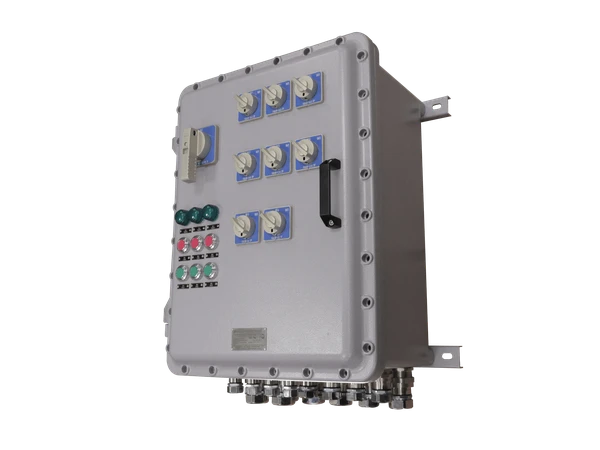

Explosion-Proof Control Cabinet LTDP-IIB-2530 for Efficient Energy Management

Designed for control, distribution and switching of electric power in electrical networks. Cabinets allow to control electric drives and automation systems, and also serve for signalling of parameters and modes of operation of these networks. The cabinet body is made of aluminium alloy without copper impurities.

The control cabinet consists of a housing and a cover, which form an explosion-proof flange connection, fastened with non-drop-out bolts. The cover and the enclosure have a hinged connection. The enclosure design allows for the installation of various external controls and internal components.

Electrical equipment is placed inside the enclosure on the mounting plate, on which the contact blocks and terminal clamps with internal wiring are mounted. For cable entry inside the enclosure the cabinets are equipped with cable glands for armoured, unarmoured cable, as well as for entry in metal sleeves and pipe wiring. Explosion protection marking 1Exd IIB T6/T5 Gb/1 Ex d IIB+H2 T6/T5 Gb/1 Ex d I...
