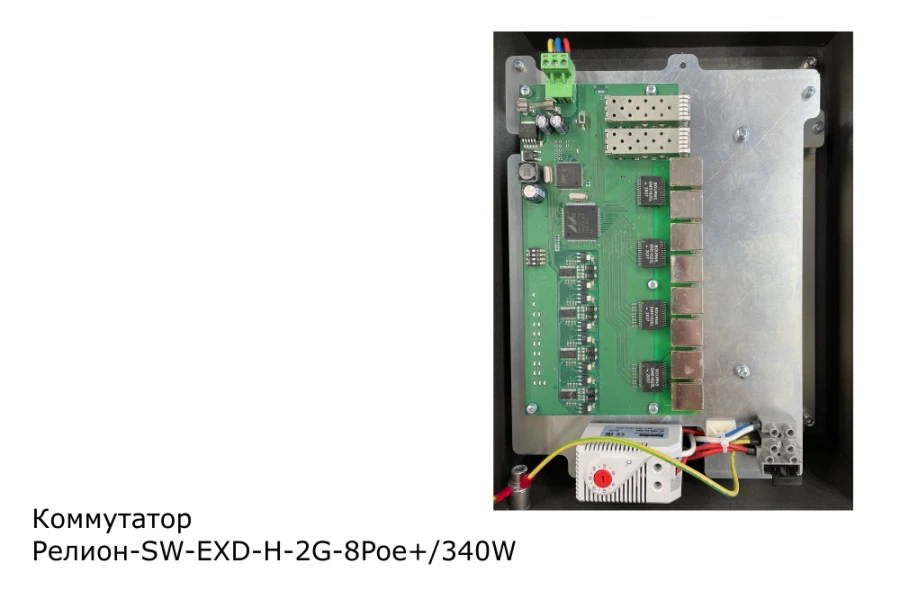

Explosion-Proof Managed Switch with 8 PoE+/340W - SW-EXD-N
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Explosion-Proof Managed Switch, 8 PoE+/340W Model SW-EXD-N Available for Import

Explosion-Proof Managed Switch with 8 PoE+/340W for Hazardous Environments

Data Transmission Devices
Manufacturer: RELION LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Switch managed, explosion-proof, network. Explosion protection marking PB Ex d I Mb / 1Ex d IIC T6 Gb (except acetylene) / Ex tb IIIC T85°C Db. All-weather version.

Supports PoE power supply for connected devices, up to 60W per port. Automatic reboot of hung IP cameras. Temperature range from -65 to +55 ° C.

Shell protection IP66/68. Explosion-proof outdoor switch, 1Gbps, Two SFP-slots, Built-in optical crossbar, 8 ports 10/100 Base-Tx PoE+. PoE power budget is 340W.

60W on all ports.

Specifications

MPLS support
no
NAT support
no
PoE support
Got it
QoS support
no
Power supply voltage
220 V
Data transmission range
100 m
Degree of protection by shell according to GOST 14254
66/68
Overall dimensions
435x350x180 m
Maximum power of connected equipment per port
60 W
PoE power budget
340 W
Weight, not more, kg
25 kg
Grounding
External and internal
Number of holes for cable glands M20x1.5
7 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
