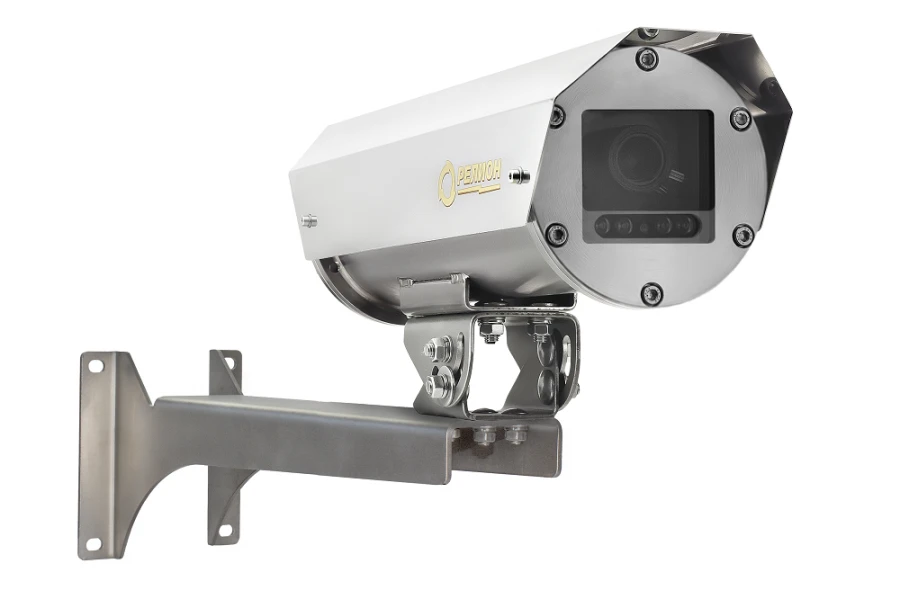

Explosion-Proof Thermal Jacket Relion-TKV-300-N-IR for Safe Heating

Explosion-proof thermal housings with built-in IR illuminator. Useful internal volume 70x70x245 mm. Temperature range: -65 ...

+55 ° C. Heating, cold start, protection against polarity reversal and short circuit. Designed to protect video equipment in security and technological video surveillance systems in hazardous areas, as well as in conditions of exposure to aggressive media.

Explosion protection marking PB Ex db I Mb / 1Ex db IIC T6 Gb / Ex tb IIIC T85°C Db allows to use the thermal housing with the equipment installed inside in hazardous areas of classes "1" and "2", as well as in underground workings of mines, mines and their above-ground structures. Particularly recommended for use in aggressive environments - alkaline and acidic environments, seawater and salt fog. Full dust and water resistance IP66/IP68 allows you to use the thermal housing in rooms with humidity up to 100%, heavy dust, as well as in open areas in difficult weather conditions.
