Extended Anodic Grounding Electrode "Mendeleevets" - MP for Cathodic Protection

Low-Voltage Electrical Panels

Manufacturer:CHIMSERVICE CJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

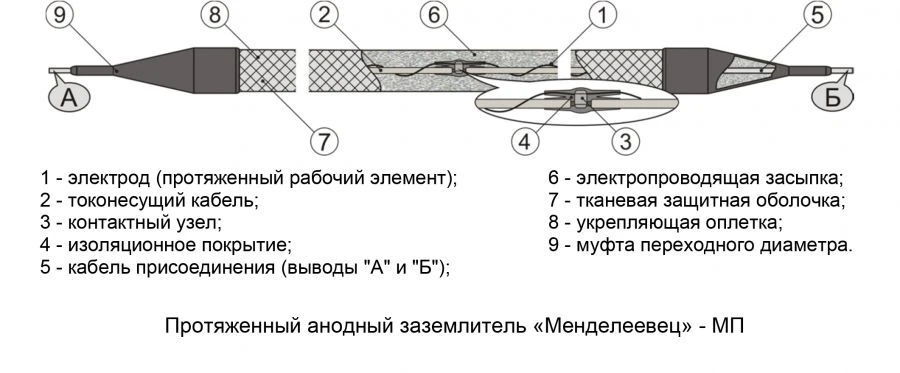

Extended anodic earthing electrode "Mendeleevets" - MP is designed for use as an extended low-soluble element of subsurface anodic earthing of the system of electrochemical protection against corrosion of the outer surface of the underground steel structure.

Specifications

Type

Prolonged anode earthing electrode "Mendeleevets" - MP

Climatic version

Cross section of the conductive core of the working element

10 mm²

Nominal outside diameter

NZ-150-14,5 mm

Electrode (working element) diameter

1.5 mm

Cross section of the connection cable

10 mm²

Outside diameter of the earthing electrode

65 mm

Service life

30 year

Material

The earthing switch is made on the basis of a working element made of chemically resistant material - titanium, coated with low-soluble material - mixed metal oxide (MMO).

Assignment

For use as an extended low-soluble element of subsurface anodic earthing of the system of electrochemical protection against corrosion of the external surface of an underground steel structure
