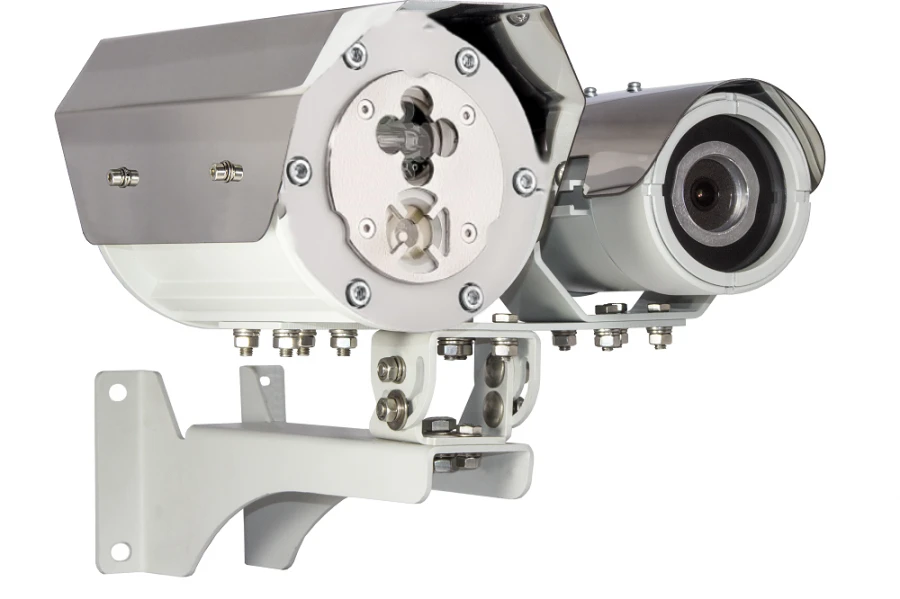

Flame Detector Spectron-601-Exd-A-B-IP for Enhanced Fire Safety

The detector fire flame detector Spectron-601-Exd-A-V-IP is a fire flame detector with a video module and self-monitoring function, operating in the infrared and ultraviolet ranges. The detector is equipped with a self-test function with transmission of the "Fault" signal to the control panel. Detect manual arc and argon welding as false alarms.

They are used in fire alarm and fire extinguishing systems in hazardous areas of classes "1" and "2" of closed objects and open installations, as well as in underground workings of mines, mines and their above-ground structures. The video module is designed for registration of alarm events. The video module is manufactured in a separate housing and is mounted on a common bracket with the IPP located on the same axis as the flame detector.

Power to the video module is supplied from the PPI via armoured cable. A separate power supply board is installed in the PPI to operate the video module.
