Flame-Retardant Power Cables with PVC Insulation, 0.66/1 kV

Available for Import

Flame-Retardant Power Cables with PVC Insulation for 0.66/1 kV Applications

Stationary Power Cables 1kV

Manufacturer: INKATEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Power cables with plastic insulation, not spreading combustion, with low smoke and gas emission for voltage 0,66 and 1 kV Power cables with plastic insulation, not spreading combustion, with low smoke and gas emission for voltage 0,66 and 1 kV

Description

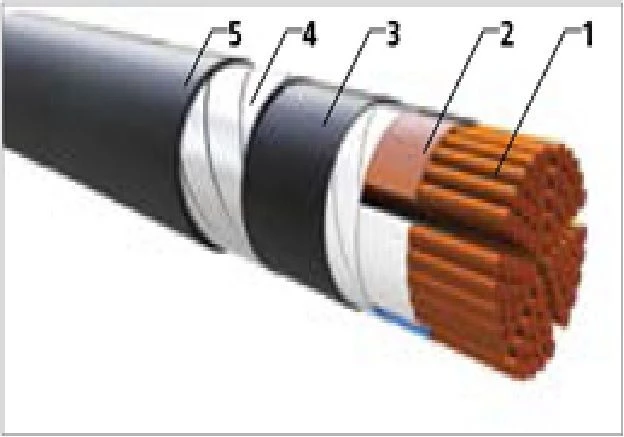

Seal cables with copper conductors, with insulation and protective hose made of polyvinylchloride plastic, not spreading combustion, with low smoke and gas emission, armoured, including cold-resistant, resistant to lubricating oils and diesel fuel, UV-resistant grades VBShvng(A)- LSm(UV) are designed for the transmission and distribution of electrical power in stationary installations at nominal AC voltage of 0.66 and 1 kV nominal frequency of 50 Hz or at DC voltage up to 1 and 1.5 kV respectively.

Specifications

Core design

Conducting core - copper single or multi-conductor, round or sector shape, corresponds to class 1 or 2 according to GOST 22483.

Filling between insulated conductors

Polyvinyl chloride

Type of sheathing and protective cover

Polyvinyl chloride

Number of conductive cores

1...5 pcs

Nominal cross sections of conductor cores

6...240 mm²

Nominal voltage

66...1 kV

Conducting core material

Copper

Mark

VBShvng (A) - LS m(UV)

Core material

Copper

Core diameter

2...6 mm

Insulation material

Insulation - of polyvinyl chloride plasticate of reduced fire hazard, for cables in "XL" version of polyvinyl chloride plasticate of reduced fire hazard with low glass transition temperature.

Sheath material

Polyvinyl chloride

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
