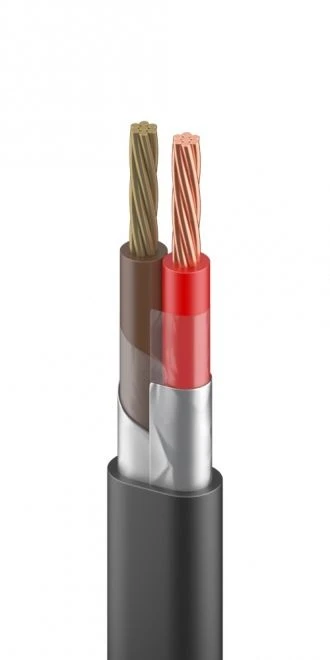

Flexible Thermoelectric Wire with Multi-Stranded Conductors for Safe Electrical Applications
Manufacturer:
REЖКАБЕЛЬ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Thermoelectrode stranded wire with multi-conducting conductors, PTGVEB grade
Thermoelectrode stranded wire with multi-conducting conductors, PTGVEVT grade
Thermoelectrode stranded wire with multi-stranded conductive cores, heat-resistant PTGVEVTng(A) grade
Thermoelectrode stranded wire with multi-conducting conductors, PTGVEBng(A)-LS grade
Description
Flexible thermoelectrode wire with conductive cores of copper and alloy or alloy pair with nominal cross-section from 0,05 to 2,5 mm2 with insulation from polyvinylchloride composition of reduced fire hazard, shielded in a sheath of polyvinylchloride composition of reduced flammability. They are intended for fixed connection of thermoelectric converters (thermocouples) to measuring instruments.
Specifications
Operating temperature range
-40...70 °C
Electrical insulation resistance, recalculated per 1 km of length under normal climatic conditions, not less, MOhm
5000
AC voltage test with nominal frequency of 50 Hz for 5 minutes between cores
1000 V
Rated AC voltage
380 V
Designation of copper and alloy or alloy pair
CA - Chromel-alumel
