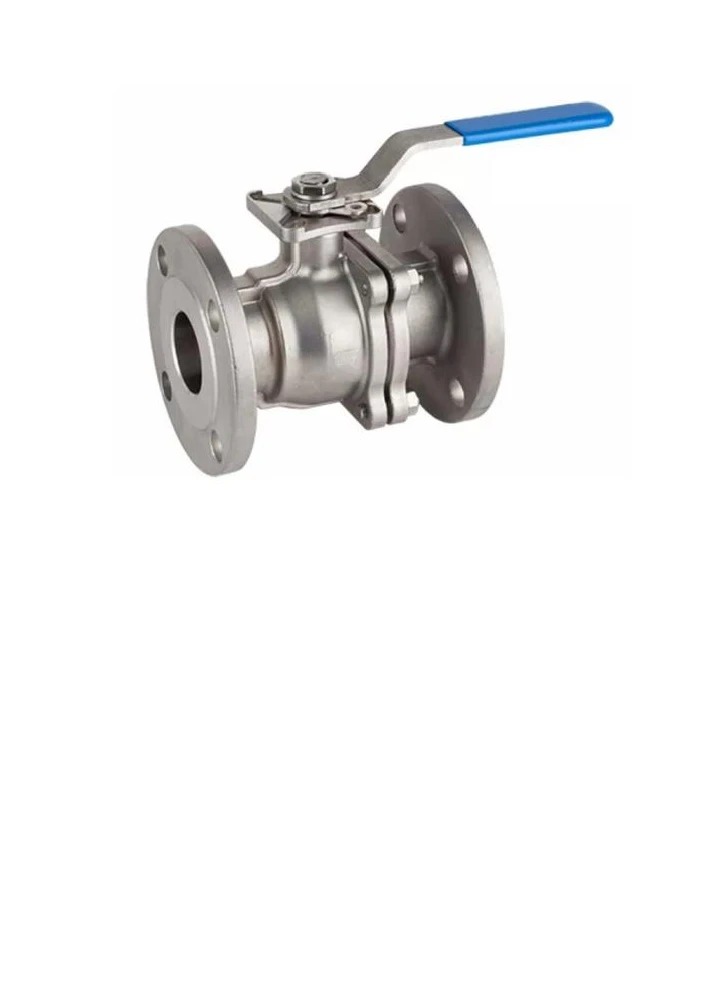

Floating Ball Valve KPLV-KSHS Series with Flange Connection for Optimal Flow Control
Manufacturer:
SPLAV-PRIVOD LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Ball valves of KPLV-KShS series for nominal diameters from DN 15 to 150 and for nominal pressure from PN 1,6 MPa (16 kgf/cm2) to PN 10,0 MPa (100 kgf/cm2) with manual drive, pneumo-, pneumohydro-, electro-, hydroelectro- and under drive, designed to close off the flow of working medium with a certain tightness in systems of automatic continuous regulation of technological processes in various industries, including for explosion and fire hazardous, highly toxic and aggressive media of chemical, petrochemical, oil and gas processing industries, as well as pulp and paper, microbiological, medical, food, light, forestry, metallurgical and other industries
Specifications
Operating medium
liquid and gaseous
Maximum torque on the drive shaft
850
Name
ball valve
Completeness
1500 pcs
Nominal pressure
10 MPa
Operating temperature
180 °C
Type of control
pneumatic actuator
Connection type
Flanged
Steel grade
20GL, 12X18N9TL
Drive pinion torque
850
Thread
mertical
Housing material
20GL, 12X18N9TL
Shutter type
Char
nominal passage
25;50;80;100;150
Assignment
shut-off valves
Nominal diameter
150
Pressure
10 MPa
Joining
Flanged
Material fabrication
20GL, 12X18N9TL
Name
20GL, 12X18N9TL
Operating temperature
200 °C
Steel grade
20GL, 20GML, 12X18N9TL
Thread
Metric
Housing material
20GL, 20GML, 12X18N9TL
nominal passage
15;25;50;80;100;150
Assignment
ball valve
Nominal diameter
15
Pressure
16 MPa
Material fabrication
20GL, 20GML, 12X18N9TL
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
