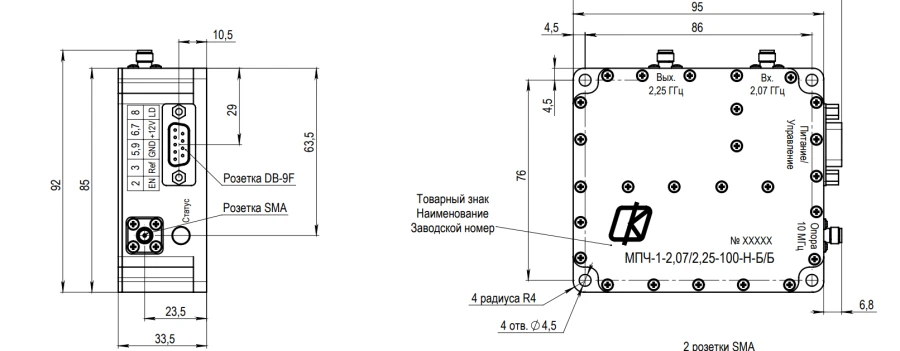

Frequency Transfer Module MПЧ-1-2.07/2.25-100-N-B/B for S Band Signal Processing
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The device is designed to carry the frequency spectrum within the S band, with a maximum signal attenuation of 5 dB. The filter at the output provides filtering of the conversion products, the sum and difference of the received harmonics, and suppression of the mirror channel. The bandwidth is 100 MHz.
Specifications
Input frequency range
2020...2120
Output frequency range
2200...2300
Transmission coefficient (at least)
-5
Input VSWR (max.)
1.6
Output VSWR (max.)
1.6
Noise figure (max.)
16
1dB compression point output power (at least)
0.003 W
Frequency of the external reference oscillator
10
Power supply voltage
B1/B8 2100/900 MHz V
Power consumption (max.)
2 W
Remote monitoring and control
Yes, via DB-9 connector, RS-485 standard
List of controlled parameters
Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
