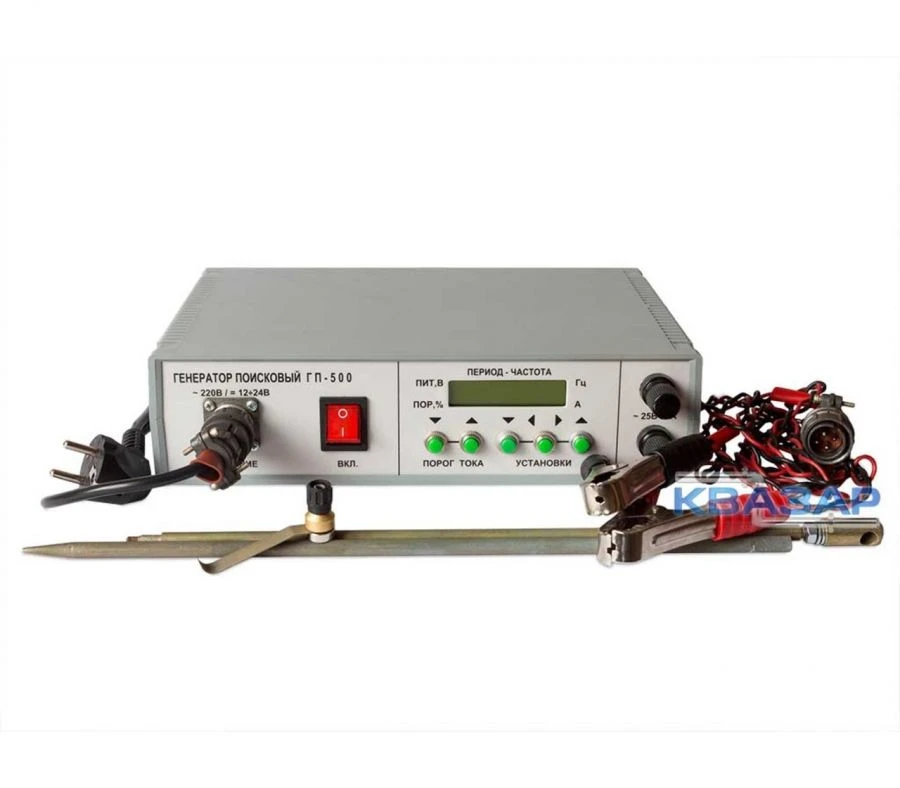

GП-500 Search Generator for Detecting Underground Insulation Damage

GP-500 search generator with power 500W is designed to form a powerful current signal in the modulating pulse frequency of 1 Hz. powerful current signal in the frequency range from 100 to 3000 Hz necessary for determining the locations of insulation damage. necessary for determining the places of damage to the insulation of underground pipelines.

Power supply The generator can be powered both from 220 V AC mains and from DC voltage sources (12 or 24 V). DC voltage sources (12 or 24 V). The generator can be used with any The generator can be used with any receivers of underground communications trace detectors having operating frequencies from 100 to 10000 Hz.

frequencies from 100 to 10000 Hz due to the possibility of selection and precise setting of the generation frequency. the frequency of generation. The generator allows selecting the modulation frequency or switching off the modulation (for afterburning).

modulation can be selected or the modulation can be switched off (for afterburning of minor insulation damage). The generator is characterised by its high specific characteristics, high efficiency and versatility. high specific characteristics, high efficiency and versatility.

Equipment: GP-500 search generator - 1pc; contact with magnet - 1pc; collapsible grounding pin - 1pc; load connection wire (3 m, cross-section 1.5 mm2) - 1 piece; electromagnetic frame radiating ...
