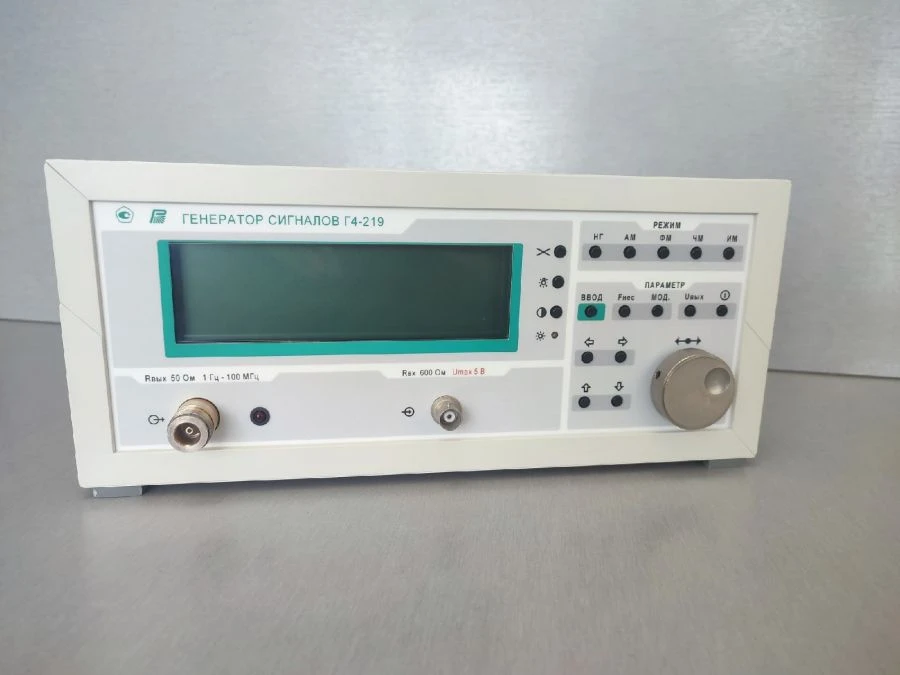

G4-219 Signal Generator - Digital Desktop Device

Available for Import

G4-219 Signal Generator for Testing and Maintenance of Radio Electronics

Electrical Measurement Instruments

Manufacturer: RIP-Impuls LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

G4-219 signal generator is a desktop digital generator of general purpose. It is intended for use as a source of signal at regulation, repair and verification of radio-electronic equipment of various as well as for use as embedded heterodynes in complex automated radio measuring systems. automated radio measuring systems.

Operating modes :1) Unmodulated generation (UG). 2) Amplitude modulation (AM). <ol> <li>Amplitude-pulse modulation (AIM).

4) Frequency modulation (FM). 5) Phase modulation (PM).</li> </ol>.

Specifications

Oscillator operating frequency range

1 Hz to 100 MHz (for all modes)

Amplitude Modulation (AM)-maximum output level without modulation

0.5 V

(AM): operating frequency range of the internal oscillator modulating frequencies

from 0.1 Hz to 100 kHz with a tuning step from 0.1 Hz to 10 Hz, the error of setting the modulating signal frequency is not more than ± 5-10-5 fm, where fm is the modulating frequency of the oscillator.

(AM): amplitude modulation factor from internal oscillator

Adjustable from 0 % to 99.9 % in 0.1 increments. %

AM factor setting error

not more than ± 1 %

(AM): operating frequency range of an external modulating complex waveform source

10 Hz to 20

Amplitude pulse modulation (APM) mode: operating range of fill frequency

From 1 Hz to 100 Hz

(AIM): Filling frequency setting step

0.001 Hz to 10 Hz

(AIM): depth of IM

At least 50

(AIM): operating frequency range of the external modulating digital signal of the TTL level

up to 1

Frequency Modulation (FM) mode: modulating frequency range of sine and rectangular signals.

From 0,1 Hz to 100 kHz, with tuning step from 0,1 Hz to 10 Hz and modulating signal frequency setting error not more than 5-10-5, frequency deviation from 1 Hz to 100 kHz with step from 1 Hz to 0,1

(FM): durations of linearly increasing and linearly decreasing parts of the triangle envelope of the signal

independently adjustable from 1 ms to 600 s in steps from 1 ms to 0.1 s, frequency increment from the carrier at the end of the linearly increasing section adjustable from 1 kHz to 50 MHz in steps from 1 Hz to 10 Hz

(HF): operating frequency range of an external modulating source of a complex waveform

10 Hz to 20

Phase modulation (PM) mode:modulating frequency operating range

from 0,1 Hz to 100 kHz with a tuning step from 0,1 Hz to 10 Hz

(FM): deviation setting error

0.2 %

(FM): operating frequency range of an external complex waveform modulating source

10 Hz to 20

Instrument weight

Does not exceed 3.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
