Gas Heating Apparatus AOGV-17.4B (BURAN) for Home Heating

Available for Import

Gas Heating Apparatus AOGV-17.4B (BURAN) for Efficient Home Heating

Gas-Powered Cooking Appliances

Manufacturer: SERVICEGAZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Gas heating apparatus AOGV-11,6B (BURAN) Gas heating apparatus AOGV-29B (BURAN) Gas heating apparatus AOGV-23,2B (BURAN)

Description

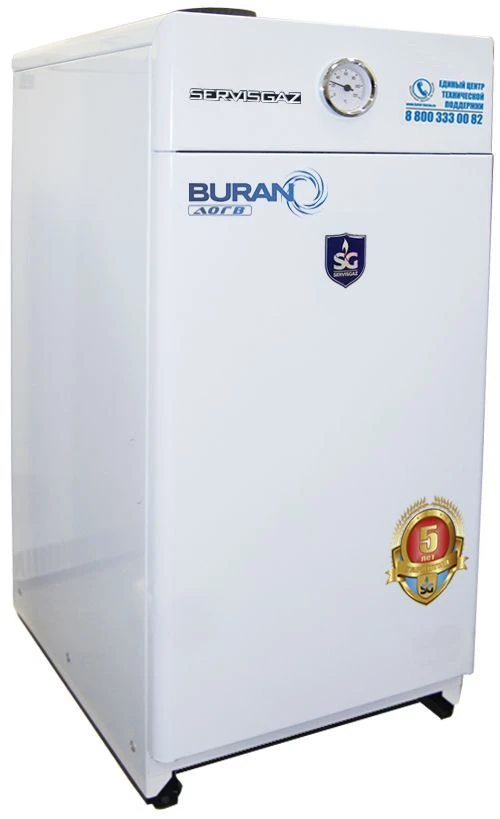

The gas heating apparatus AOGV-17,4B (BURAN) is manufactured in accordance with TU 4858-003-25331063-2014. The apparatus is designed for heat supply of residential buildings equipped with water heating system with working pressure of the heat carrier up to 0.3 MPa (3.0 kGs/cm²) and temperature up to 95°C with forced or gravity (natural) circulation of the heat carrier with automatic maintenance of the set temperature of the heat carrier. Approximate heated area of 160 sq.

m.; Power 17,4 kW; Efficiency not less than 90%; Control: mechanical; Burner own production SABK; Gas automation 630 EUROSIT or TGV-307; Energy independent; Type of heat exchanger: Cylindrical shape, heat-tube with screw turbulators; Heat exchanger material: steel, wall thickness of the heat exchanger 3 mm; Chimney diameter: 120 mm.

Specifications

Power

17400 W

Weight

52 kg

Chimney

120 mm

Heated area

160

EFFICIENCY

Flat grinder, Specialised grinder %

Natural gas consumption with the lowest calorific value of 8000 kcal/cubic meter.

1.78

Maximum water temperature at the unit outlet

95 °C

Nominal gas pressure

1.3

Nominal heat output

17.4 kW

Mark

BURAN

Height

850 mm

Width

350 mm

Length

450 mm

Type of gas automatics

630 EUROSIT or TGV-307

Type of gas burner

SABK (ServiceGas LLC)

Type of installation

Floor

Assignment

Heating

Type of fuel

Natural gas according to GOST 5542

Camera type

Open

Main heat exchanger material

Steel

Availability of circulation pump

Type by method of hot water production

Single-circuit

Type of apparatus, depending on the type of fuel used

Gas

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
