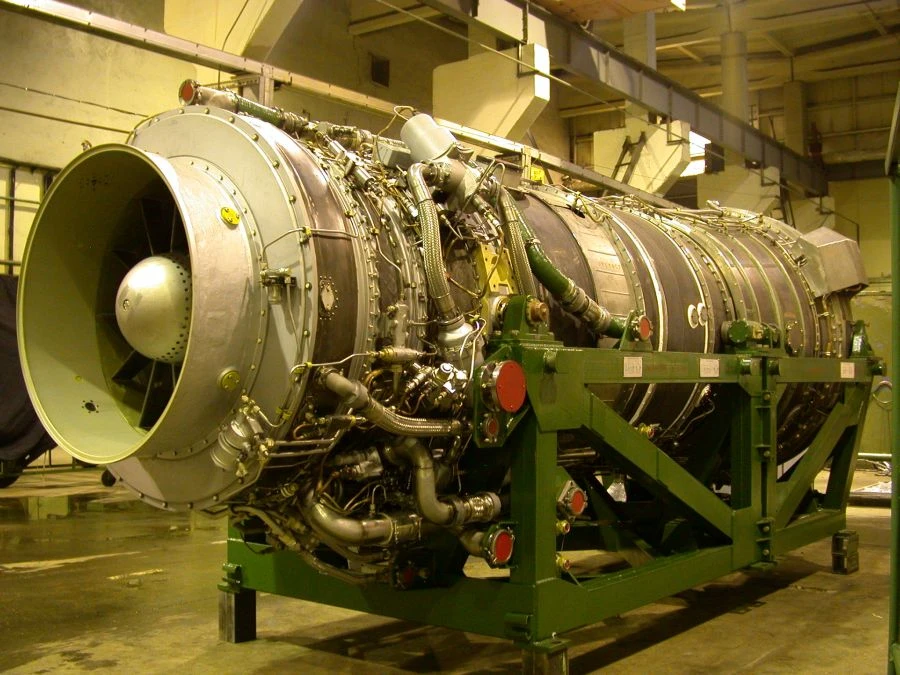

Gas Turbine Engine NK-16-18STD for Gas Compressor Drive Systems

Gas Turbine Units

Manufacturer: KMPO OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Gas turbine engine NK-16-18 STD ser.6 Gas turbine engine NK-16-18ST ser.2 Gas turbine engine NK-16-18STD

Description

Gas turbine engine NK-16-18STDV is designed for use as a blower drive of gas pumping unit GPA-C-16 and GPA-16 "Volga". It is developed on the basis of the aircraft engine NK-8-2U ser.2. The NK-16-18STDV engine has an electronic-hydraulic control system.

As an actuator dosing fuel gas supply to the combustion chamber is used dosing unit DVB with a control unit. The engines are manufactured both from new parts and assemblies and using parts and assemblies of the NK-8 family of aircraft engines that have outlived their service life in flight operation. In this case, parts and assemblies of the basic aircraft engines must be repaired according to the repair documentation in force for them.

Specifications

Rated power at the drive shaft of the ST as part of the GCU under station conditions at the compressor inlet air temperature of

18000 kW

Effective efficiency at the drive shaft of ST as part of GCU under station conditions at 18000 kW capacity

29.4 %

ST shaft speed at power 18000kW, temperature 15°C, full pressure loss in the inlet 100 mm waterst,

5350

Fuel gas consumption at calorific value of gas 8100 kcal/m³ (33906 kJ/m³), at power of 18000kW

1.236

The motor is operable at ambient air temperature

-60...45 °C

The motor is operable at relative humidity of air, up to

100 %

Weight of the motor as part of the delivery with frame

7.8 kg

GG engine weight with frame

4 kg

Weight of ST motor with frame

3.8 kg

Engine weight without frame

6 kg
