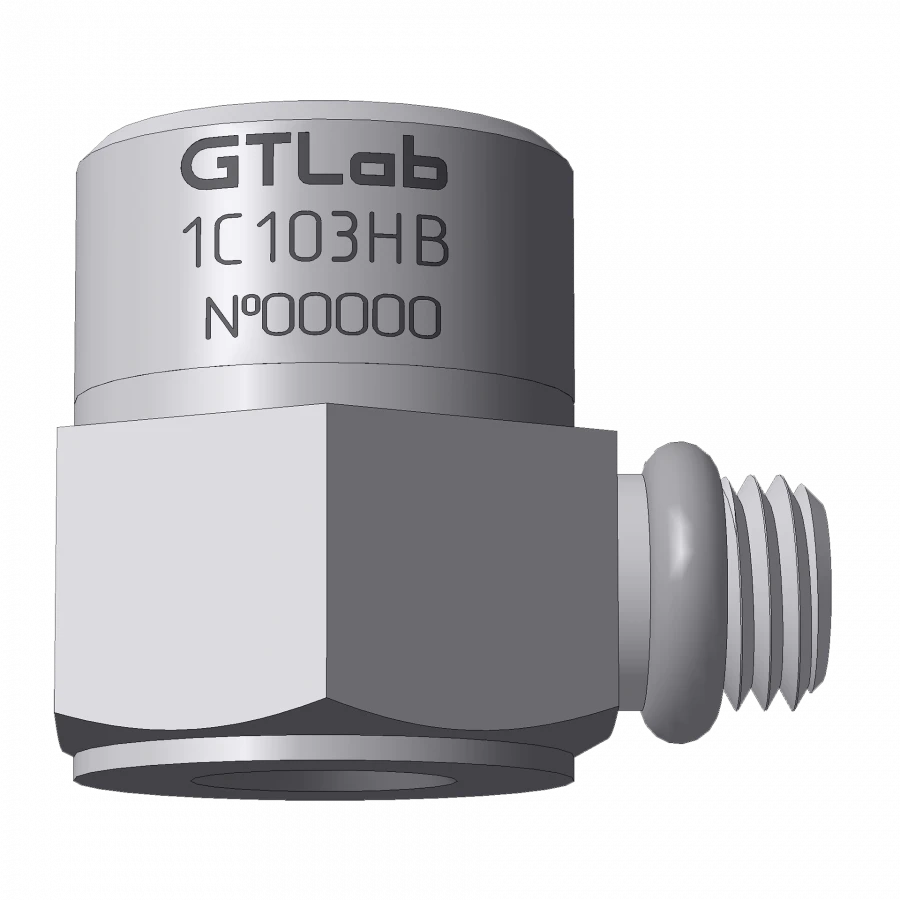

General Purpose Accelerometer for Extreme Conditions C103HB-01

Available for Import

General Purpose Accelerometer C103HB-01 for Extreme Conditions

Movement Measurement Devices

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

General purpose accelerometers with charge output are designed for extreme conditions of application: high temperature and shock accelerations of medium or high intensity in a wide frequency range

Specifications

Conversion factor (± 20%)

1 pCal/(m-s-2)

Relative transverse conversion ratio

< 5 %

Maximum value of the measured acceleration amplitude

± 100,000 m/s2

Maximum impact (peak value)

± 150,000 m/s2

Operating temperature range

-60 ... +250 °?

Operating frequency range (frequency response unevenness ± 1 dB)

0.5 ... 16 000 Hz

Natural frequency in fixed state

> 50 kHz

Electrical capacity

700 ... 1000 pF

Insulation resistance under normal conditions

> 10,000 megohms

Housing material

Titanium alloy

Weight (without cable)

7,6 ?

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
