Available for Import

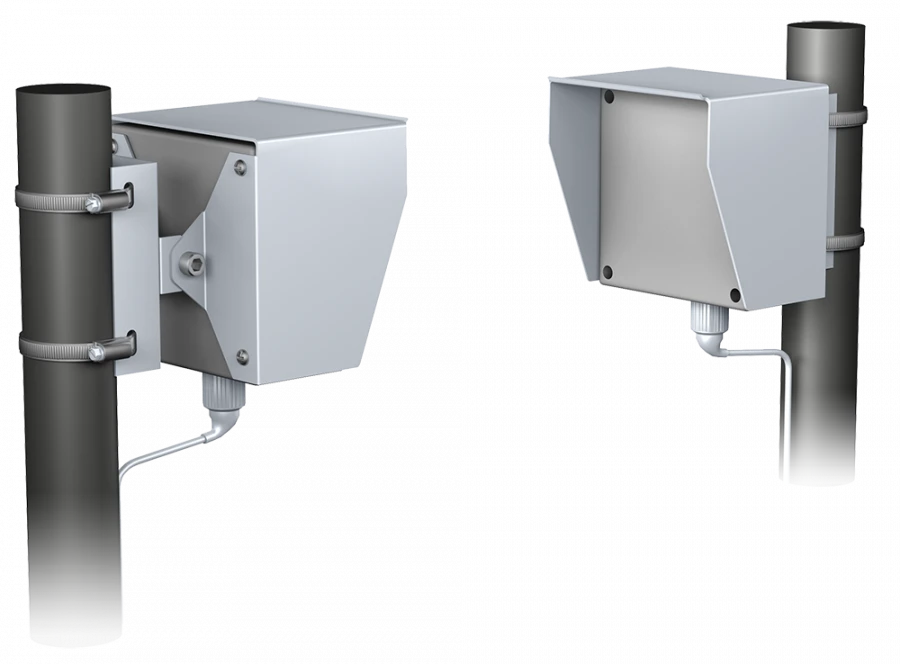

Grad-02M Linear Radio Wave Security Detector for Perimeter Protection

Intrusion and Fire Detectors

Manufacturer: GARDLINER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The detector is designed to protect the perimeters of various objects. The detector creates a continuous linear-extended detection zone and forms a notification of alarm by opening the output contacts of the executive relay when the intruder crosses the detection zone (ZO). The detector is intended for use as part of intruder alarm systems.
The detector has two application options:

- when installed on supports - to detect a person crossing the detection zone on the ground surface in "full height" or "bent";
when installed on top of the fence - to detect a person crossing the fence by climbing over.

Specifications

Detection area length "GRAD-02M"

10...100 m

Detection area width "GRAD-02M"

0.7 m

Height of "GRAD-02M" detection zone

1.3 m

Operating frequency

24150 +-100

Supply voltage range

9...30 V

Assigned service life

8 year

Overall dimensions

170 by 150 by 150 mm

Operating temperature range

- 50 to +55 °C

Detection area width

0.7 m
