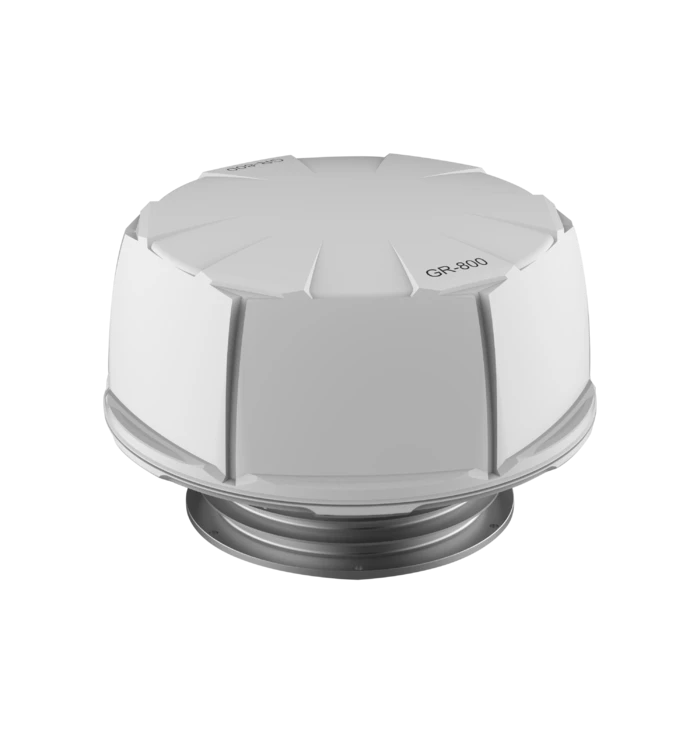

Ground Radar for Perimeter Security E_Radar-IQ-GR-800 - Detect Movement Effectively

Radar & Navigation Equipment

Manufacturer: DIAGNOSTIKA-M LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Compact pulse-Doppler radar for motion detection of ground targets. Protected area up to 2,100,000 square metres

Designed for detection:

People Cars Boats

Features

Track update 4 times per second Azimuthal accuracy ± 0.50 No moving parts Zero maintenance cost DPA function Increases the detection range up to 1200 m. Compact size 360 x 180 mm Airtight housing PoE+ technology One cable connection Quick installation 24/7 all-weather protection

Specifications

Radar type

Pulse-Doppler, Solid State, Kinematic Free

Power supply / Data transmission

PoE+ / Ethernet

False Alarm Filter

????????????????

Azimuth radar overview, hail

360

Operating temperature

-40...60 °C

Dynamic Power Distribution

Got it

Minimum EPR (Effective Scattering Area)

0,25m² - Man

Simultaneously tracked targets

32 pcs

Instrumental Detection Range (DPA)

800/1000/1200 m

Detection Range (Standard / Maximum)

800m / 1200m m

Operating frequency

5,7÷5,8 GHz

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
