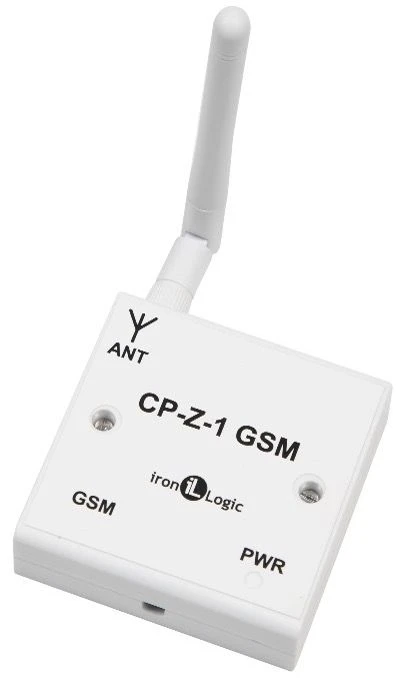

GSM Reader for Access Control Systems – Model CP-Z-1

Electrical Interface Devices

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use in access control and management systems (ACS) using GSM standard cellular communication and allows the incoming call phone number to be used as an identifier for access control. In addition, incoming SMS messages can also be a source of identifier. The received identifier in the form of a certain code sequence can be further transmitted:1.

To the controller via iButton (Dallas Touch Memory) or Wiegand protocols.2.In a personal computer (PC) via RS-485 interface.Features of the reader:- the possibility of identifying the phone number during a call and when receiving SMS-messages;- setting the parameters of the reader via SMS-messages;- the RS-485 interface allows you to connect the reader to a computer, and both receiving codes from the reader and setting the parameters of the reader are possible;- the connector for connecting the GSM antenna allows you to increase the level of reception of the network signal by connecting a remote antenna.

Specifications

Operating frequency

GSM standard

Identification by phone number

By call and SMS

Reading range

6...10 cm

Output interface

Ibutton (Dallas Touch Memory), Wiegand (26, 34, 42, 50, 58), RS-485

Code transfer format

BCD, HEX

Database of numbers: administrators

4 pcs

Database of numbers: users

15 pcs

Connector for connecting an external antenna

SMA-F

Maximum communication line length: Dallas Touch Memory

15 m

Maximum communication line length: Wiegand

100 m

Maximum communication line length: RS-485

10 m

Light indication

Got it

DC supply voltage

8...27 V

Consumption current (at 12V)

Not more than 500 mA

Switching current

Not more than 100 mA

Dimensions

65x65x20 mm

Housing material

ABS plastic

Operating temperature

-40...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
