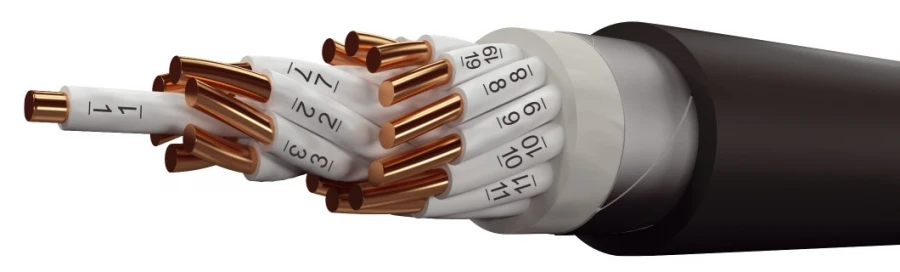

Halogen-free Fire-resistant Control Cables KPBPng for Reliable Electrical Management

1. Conducting core - single-wire round, 1 class according to GOST 22483 from soft copper wire with nominal cross-section from 0,75 to 6,00 mm2.
2. core insulation is made of halogen-free polymer composition.
3. Core - insulated cores of cables twisted by twisting.
4. Inner sheath - of halogen-free polymer composition with filling of gaps between cores.
5. Protective cover:

• - armour made of two 0.2 mm thick galvanised steel bands,
• protective hose made of halogen-free polymer composition.

The cables are designed for transmission and distribution of electrical energy in stationary electrical installations at alternating voltage up to 0.66 kV with frequency up to 100 Hz. Cables are designed for electrical wiring in office premises equipped with computer and microprocessor equipment, in kindergartens, schools, hospitals and for cable lines of entertainment complexes and sports facilities, as well as for cable lines of power supply circuits and control...
