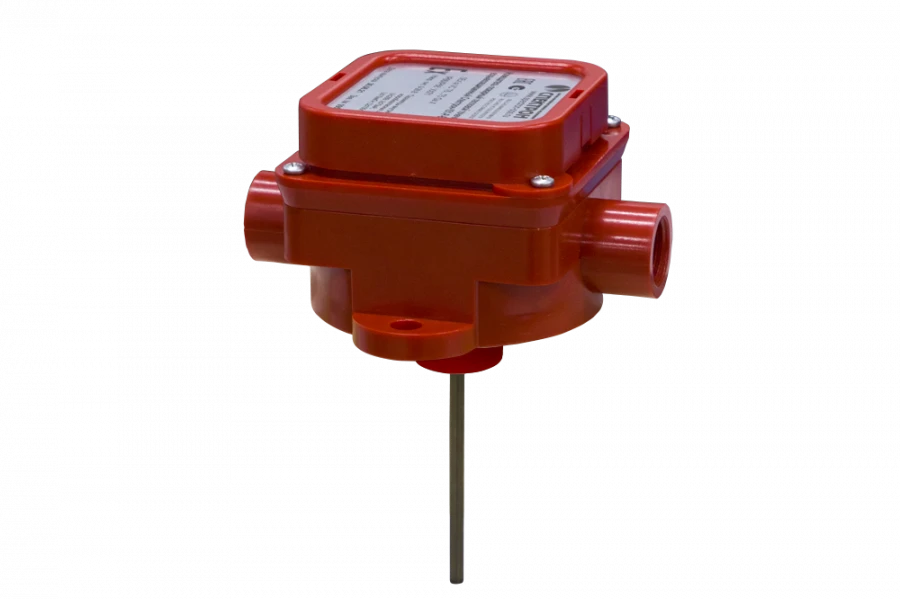

Heat Fire Detector Spectron-101-R-Exm for Reliable Fire Detection

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to detect fires accompanied by the release of large amounts of heat. Upit - 9...28V. IP66/IP68.

Temperature range from -75°C to +85°C. Temperature range of sensitive elements -75°C ... +150°C.

Programmable (adjustable) as differential, maximum differential in temperature classes A1, A2, A3, B, C, D, E, A1R, A2R, A3R, BR, CR, DR, ER. Self-monitoring function. Transmission of a fault signal via an alarm loop.

Housing - plastic. Explosion protection marking RO Ex ma [ia] 1 Ma X/Ga/G? Ex ia/eb+mb IIC T6...T5 Gb X/Ex tb IIIC T85ºC...T100ºC Db X (electronic unit), RO Ex ia I Ma X/0Ex ia IIC T6...T4 Ga X/Ex ia IIIC T85ºC...T135ºC Da X (remote element).

When installed in mines and mines, the power supply is not higher than 12V.

Specifications

Weight

1 kg

Overall dimensions

80x150x80 mm

Explosion protection marking of the remote element

RO Ex ia I Ma X/0Ex ia IIC T6...T4 Ga X/Ex ia IIIC T85ºC...T135ºC Da X

Temperature range of sensitive elements

150 °C

Operating temperature range

85 °C

Operating temperature

(75);+85 °C

Designation

IP101-10-R Fire thermal point detector

Assignment

Designed to detect fires accompanied by the release of large amounts of heat

Explosion protection marking

RO Ex ma [ia] 1 Ma X/Ga/G? Ex ia/eb+mb IIC T6...T5 Gb X/Ex tb IIIC T85ºC...T100ºC Db X

Housing material

ABS plastic

Power supply voltage

9...28 V

Sensitivity levels

T6/T5/T4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
