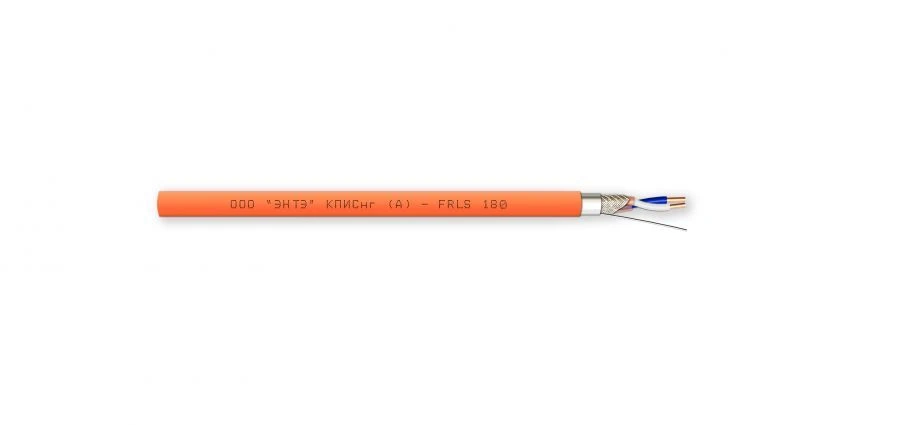

High Fire-Resistant Cable for Data Transmission - KPISng(A)-FRLS

Cable of increased fire resistance for data transmission systems with twisted pair of insulated silicon-organic rubber copper single-wire conductive cores with diameter from 0,50 to 1,75 mm with the number of pairs from 1 to 4, with an additional barrier in the form of winding "eight" polyimide film in the twisted pair, with an additional thermal barrier over the core in the form of a winding of mica-containing tape, with a screen of laminated aluminium foil, with a sheath made of polyvinyl chloride plastic of reduced fire hazard with low smoke and gas emission, for rated voltage up to 300 V inclusive alternating current frequency of 50 Hz, for single and group laying.
