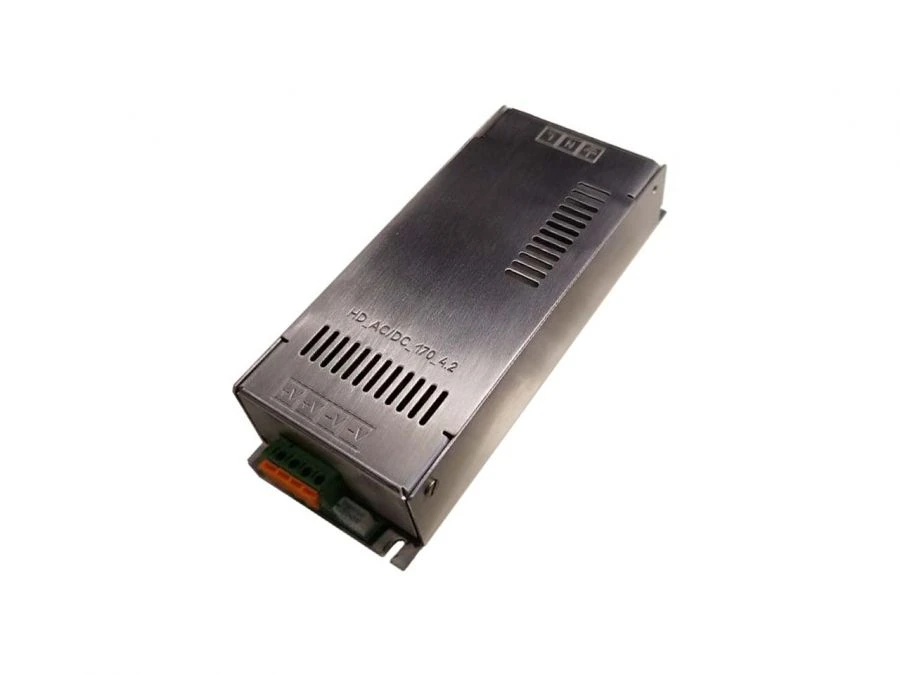

High-Frequency Power Supply Converter HD_AC/DC_170_4.2 for Efficient Voltage Transformation

Computer Power Devices

Manufacturer: HD LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

POWER SOURCE HDAC/DC1704.2 is a high-frequency pulse power converter with high efficiency. The power supply is designed to convert the input voltage up to the set value required by the internal elements of the device, to provide galvanic isolation of the output circuits from the mains voltage. The power supply uses double conversion.

The HDAC/DC1704.2 POWER SOURCE is used in devices, installations and systems that require a DC power supply. The product is used in most cases instead of traditional mains transformer power supplies with solid-state stabilisers. With the same power, the product is characterised by smaller overall dimensions and weight, high power factor, high reliability, and most importantly - higher efficiency and the ability to operate in a wide range of input voltage.

Specifications

Maximum output voltage

4.2 V

Maximum output current

40 A

Power

170 W

Type

Impulse

Form factor

Built-in

Number of channels

1 pcs

Stabilization mode

Voltage

Display availability

Programmability

Interface type

Overheat protection function

Armoured glass

Availability of overvoltage protection function

Armoured glass

Overcurrent protection function

Armoured glass

Availability of remote control function

Timer availability

Height

32.9 mm

Width

160 mm

Depth

65.1 mm

Weight

0.263 kg

Maximum input voltage

264 V

EFFICIENCY

85 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
