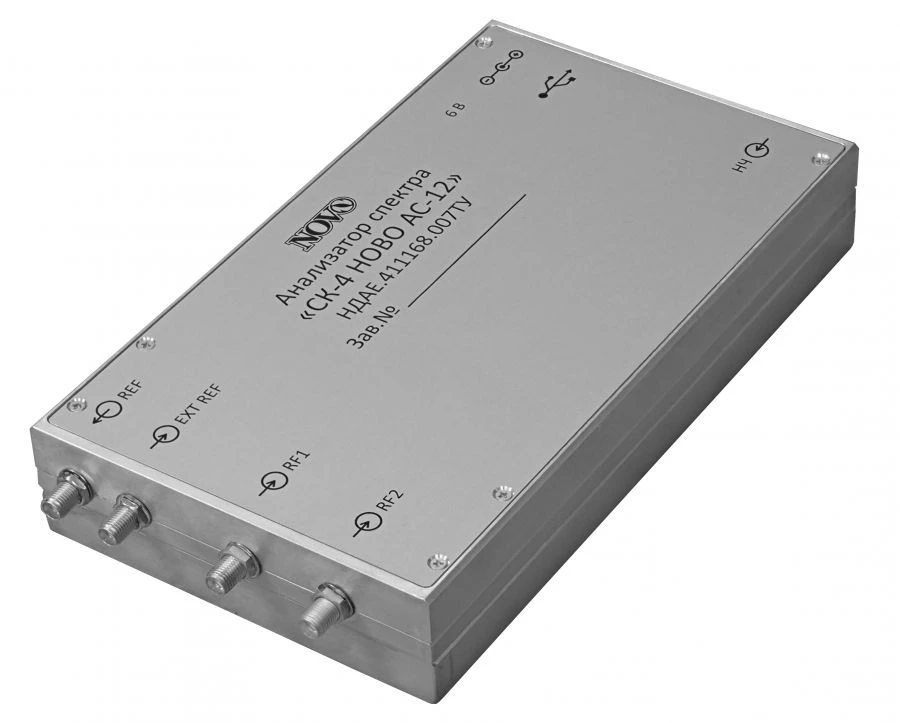

High-Frequency Spectrum Analyzer SK-4 NOVO AC-12

High-Frequency Spectrum Analyzer SK-4 NOVO AC-12

Brand: NOVO

$900 - $3,600 USD

MOQ: 2 pieces

Key Features

Input signal frequency range: 0.009...14500 t

Overall dimensions (W×D×H), max.: 110 x 203 x 33 mm

Tolerance limits of relative frequency error of internal reference oscillator: ± 0.000001

Maximum measurable input signal level (1 dB compression level), not less than: 5 dBm

Supplier Information

NOVO LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from NOVO

High-Frequency Signal Generator G-7 NOVO GSP-10

$900-$3,600

Sirius-MK Software-Hardware Complex for Detection of Electronic Devices

$9,000-$36,000

Sirius-MKI Software-Hardware Complex for Technical Research

$9,000-$36,000

Sirius-MKI Software and Hardware Complex for Acoustic Protection Evaluation

$9,000-$36,000

Description

The product is designed for measuring spectrum parameters of high-frequency radio signals in the frequency range from 0,009 to 14500 MHz

Specifications

Input signal frequency range

0.009...14500 t

Overall dimensions (W×D×H), max.

110 x 203 x 33 mm

Tolerance limits of relative frequency error of internal reference oscillator

± 0.000001

Maximum measurable input signal level (1 dB compression level), not less than

5 dBm

Limits of permissible error of input signal level measurement (in the frequency range from 10 kHz to 10000 MHz in the range of l

-1...1

Average displayed intrinsic noise level in the frequency range from 10 kHz to 100 MHz, max.

minus 155 dBm/Hz

Average displayed intrinsic noise level in the frequency range from 100 to 6000 MHz, max.

minus 160 dBm/Hz

Average displayed natural noise level in the frequency range from 6000 to 10000 MHz, not more

minus 155 dBm/Hz

Power spectral density of phase noise (frequency 100 MHz, 1 kHz detuning), not more

minus 120 dBn/Hz

Minimum frequency bandwidth of the measuring filter

1.5 kg

Time of establishing the working mode, not less than

1 kcal/h

Weight, not more

750 million m² total area

Power supply voltage

6...6.5 thousand m³

Current consumption, not more than

1.5

Power consumption, max.

15 cm³
