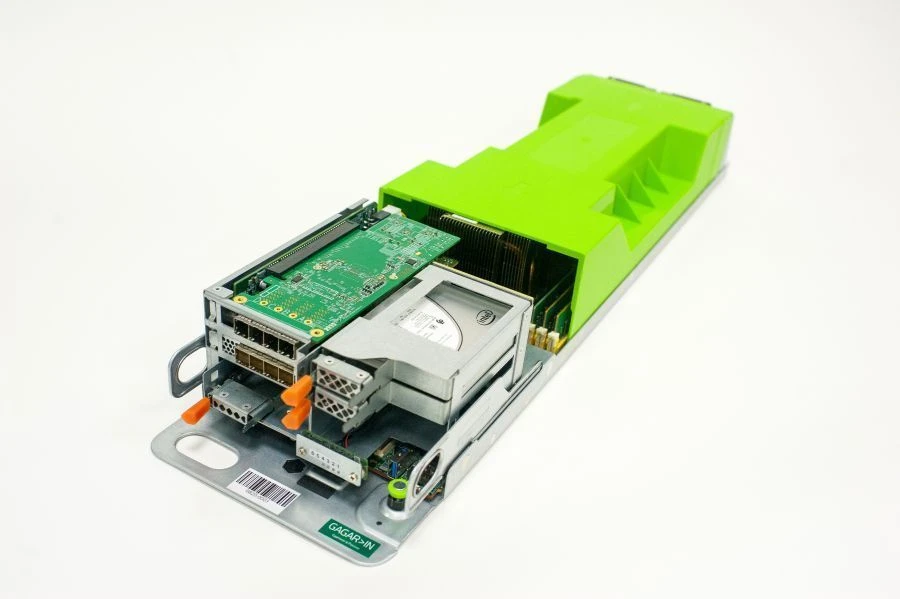

High-Performance Data Processing Server NERV.466216.008–XX–XX–X–X–X

Available for Import

High-Performance Data Processing Server NERV.466216.008 for Reliable Data Storage and Processing

Data Processing Systems

Manufacturer:GAGAR.IN LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

A computing server is a high-performance computing device designed to store and process data. As the main processor the 2nd Generation Intel Xeon Scalable Processors (socket LGA3647) is used in the amount of 2 pcs. The design of the power supply system of the server assumes the use of a common 12.5 V DC power bus.

The server has: 12 slots for installation of buffered register memory DDR4 SDRAM with support for error correction (ECC); 2 slots for installation of PCIe Gen3 x16 expansion cards; 1 slot for installation of OCP 2.0 Mezzanine expansion cards, built-in network interface for management Ethernet 10/100/100 Gbit/s. UEFI and BMC development BMC microcode by GAGAR>N.

Specifications

Operating temperature range

10ºS - 35ºS °C

Number of cooling fans

2 pcs

Communication tools and platform management interface

Ethernet 10/100/1000 Mbps with RJ45 connector, IPMI via RJ45 (front panel)

USB connectors

usb 3.0 type A; usb 3.0 type C

Video interface

VGA port

Storage subsystem in the disk superstructure

Slots for up to 4 hot-swap SSDs with SATA interface pcs

Storage subsystem on the motherboard

M.2 module slot

Expansion card connectors (ECU)

Mezzanine ocp 2.0

Architecture

?86-64

Form factor

2 OU

Maximum RAM capacity

1536

Type of RAM

DDR4 ECC RDIMM/LRDIMM

RAM bus frequency

2400/2666/2933/3200

RAM connectors

B1/B8 2100/900 MHz pcs

Processor chipset

intel® c621

Processor connector

Two socket p lga 3647

Processor family

2nd intel® xeon® scalable processor SILVER/GOLD/PLATINUM

Front panel and indication

led power indicator; led disk activity indicator; led bmc controller error indicator

Power subsystem

the server does not have its own power supply units and is powered from a common rack level bus with 12 V DC voltage

Number of processor cores

10...28 pcs

Processor frequency

1.8-4.0

Installed storage capacity

240-7864

Availability of hardware RAID controller

PCIe, HHHL, with support for RAID 0, 1, 5, 10, 50 pcs

Availability of RAID controller

Hybrid VROC with 0, 1, 5, 10 support pcs

Availability of Ethernet network adapter

Mezzanine OCP 2.0, PCIe HHHL pcs

Type of PCIe expansion cards to be installed

FC HBA, SAS HBA, RAID адаптер, Ethernet, InfiniBand, GPU адаптер

Type of connectors for connection

SFP+ optical transceiver, SFP 28 optical transceiver, QSFP 28 optical transceiver, DAC cable, AOC optical cable, USB type A, USB type C, VGA, RJ45, SAS mini-HD

Weight

No more than 8 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
