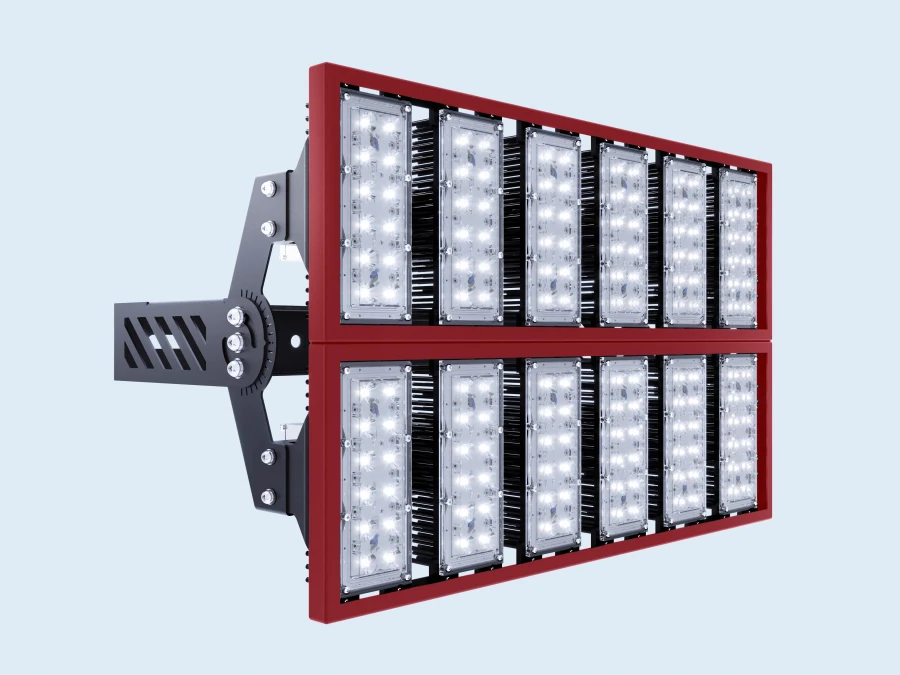

High-Performance LED Floodlight for Outdoor Lighting LV-EAGLE x144

Available for Import

High-Performance LED Floodlight for Outdoor Utility Lighting - LV-EAGLE x144

LED Lighting Fixtures

Manufacturer: LEDVIZOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Lightweight mast floodlight with high light output. Optimised for illuminating large areas from mast supports and buildings. Designed for outdoor utilitarian lighting, namely for airport aprons and logistics complexes, factory floors and shopping centre car parks, stadiums and public spaces.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Color rendering index (CRI), not less than

Degree of protection (IP)

IP67

Type by installation location

stationary, outdoor, on a bracket

Climatic version

UHL1

Pulsation factor

5 %

Luminous flux, lm

61200...81100 lm

Upper operating temperature value

45 °C

Light output, lm/W, not less than

125

Power consumption

510...705 W

Housing material

aluminum, polymer coated steel

Height

135 mm

Width

403 mm

Length

658 mm

Net weight

15.2 kg

Lower operating temperature value

-40 °C

Protection class against electric current

Correlating color temperature (CCT)

2700...6500 K

Power factor

0.95

Rated supply voltage

230 V

Type of supply current

Variable

Designated service life

B1/B8 2100/900 MHz year

Warranty period of operation

5 year

Type of conditional light intensity curve in the equatorial plane

circular

Type of light intensity curve in characteristic meridional planes

L/H/D/S

Light distribution class

Mains frequency

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
