Available for Import

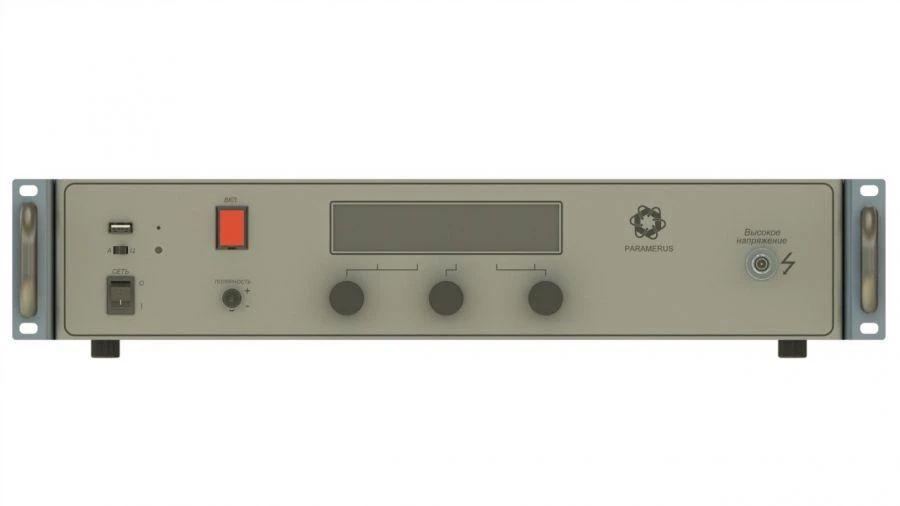

High Precision High Voltage Power Supply L-HVLP-UN-RP for Stable Voltage Applications
Manufacturer:
PARAMERUS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The L-HVLP-UN-RP series of laboratory precision high-voltage power supplies with bipolar output is designed to supply devices that require high stable voltage with ultra-low ripple and low temperature and time drift of parameters.
FEATURES.
Ultra low ripple (< 750uV)
Low EMI
Low temperature drift
Output voltage adjustment 0 - 100%
Transient time adjustment
Output voltage polarity reversal
Short circuit protection
Arc fault protection
Output voltage protection
Temperature protection
Analogue and digital control interfaces available
1 year warranty
FEATURES.
Ultra low ripple (< 750uV)
Low EMI
Low temperature drift
Output voltage adjustment 0 - 100%
Transient time adjustment
Output voltage polarity reversal
Short circuit protection
Arc fault protection
Output voltage protection
Temperature protection
Analogue and digital control interfaces available
1 year warranty
Specifications
Digital control interfaces
RS-232; RS-485; USB; GPIB; Ethernet
Setting the output voltage/current
Multi-turn potentiometer on the front panel
Defenses
By input power supply, undervoltage and overvoltage, output current exceeded, output power exceeded, output short circuit, output arc discharge, operating temperature exceeded
Output voltage setting accuracy
< 150 ppm
Instability of output voltage when input voltage changes
< 30 ppm
Instability of output voltage when load changes
< 40
Output voltage adjustment
0 to Vout max
Polarity
Positive, Negative or Customizable
Power supply voltage
195...245 V
Output voltage ripple
750 µV
Output power
15.5 W
Maximum output voltage
0...3100 V
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
