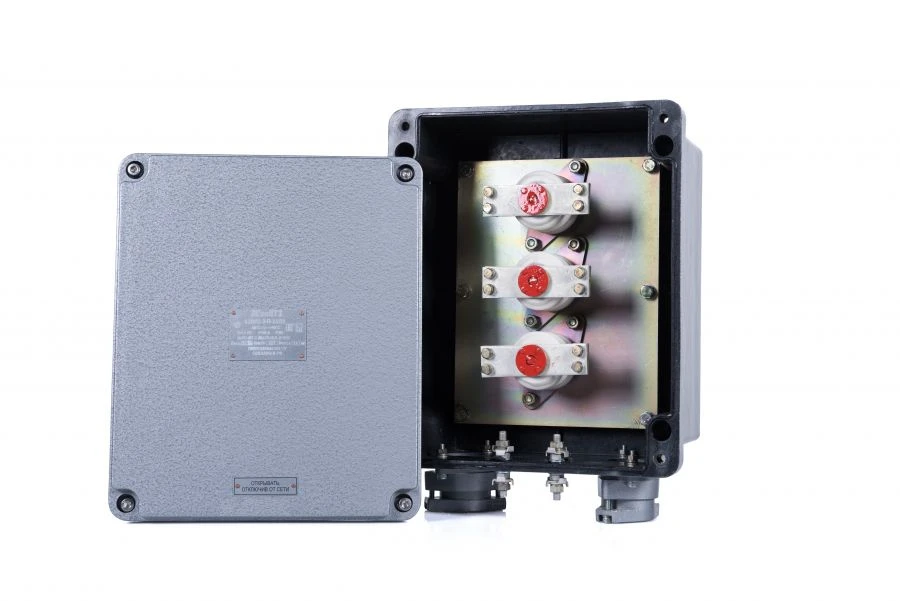

High-Voltage Explosion-Proof Terminal Box KZV2.2-P for Power Cable Connections
Manufacturer:
VELAN OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Explosion-proof high-voltage clamping box of KZVVV type
is designed for switching of power cables of KPBP 3x10
and KPBP 3x16 and others, supplying high-voltage equipment. The box can be equipped with mounting clamps. Boxes are completed with two cable glands VK40 on the side "D" for the input of power cables such as KPBP 3x10 and KPBP 3x16.
is designed for switching of power cables of KPBP 3x10
and KPBP 3x16 and others, supplying high-voltage equipment. The box can be equipped with mounting clamps. Boxes are completed with two cable glands VK40 on the side "D" for the input of power cables such as KPBP 3x10 and KPBP 3x16.
Specifications
Climatic version
??1;?1;???1;?1,5
Nominal voltage
2200 V
Rated current
100 A
Sheath material
Plastic
Overall dimensions of the shell (HxWxH)
522x392x293mm
Shell weight
6.4 kg
Explosion protection marking
Ex tb IIIC T200°C Db;1Ex e II T3 Gb
Degree of protection against external influences
IP66
