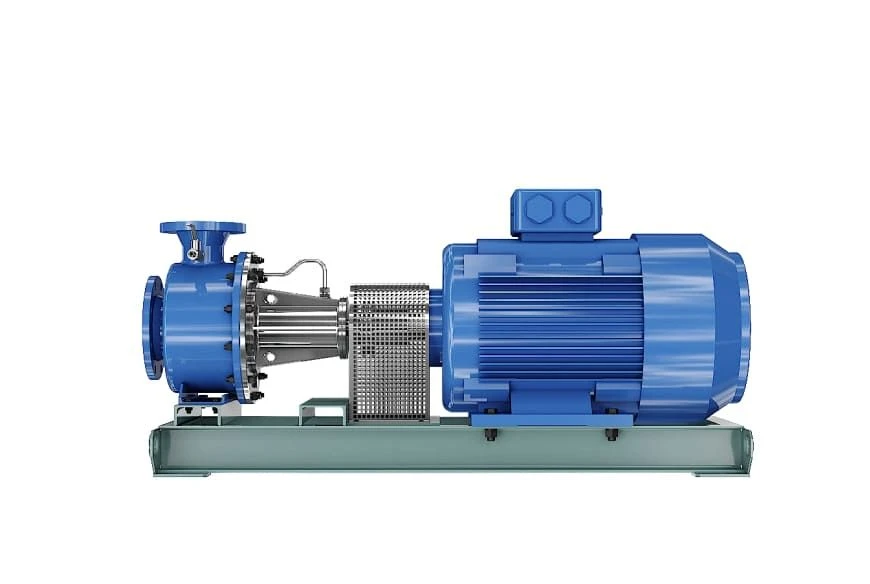

Horizontal Centrifugal Electric Pump Unit Type CNA Available for Import

Horizontal Centrifugal Electric Pump Unit Type CNA for Efficient Liquid Transfer

Centrifugal Liquid Pumps
Manufacturer: TECHNOSILA LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Centrifugal pump unit type CNH

Description

Electric pump units of CNA type are designed for pumping process liquids in NPP systems of the 1st and 2nd circuits. The pump included in the unit is a centrifugal horizontal cantilever single-stage pump with axial inlet. The pump is driven through an elastic coupling with a mounting spacer.

Impeller is of closed type. Shaft seal is single or double mechanical seal. Pump flow parts are made of steel 12?18?10?, 12?18?9??.

The units can be supplied for export, including countries with current frequency of 60 Hz. The unit is supplied with foundation bolts, mating flanges and fasteners to them.

Specifications

Operating medium
Designed for pumping technological liquids.
Climatic version
U, UHL,T placement category 2,3,4 according to GOST 15150
Pressure
25...80 m
Material
Stainless materials, duplex steels, high-strength and gray cast iron are acceptable
Feeding
200...800
Medium density, not more than
1100
Medium temperature
Flat grinder, Specialised grinder °C
Weight
2900...4200 kg
Outlet pressure
0.2...0.8 MPa
