Horizontal Hydraulic Press PA6738 for Efficient Pressing and Ejecting

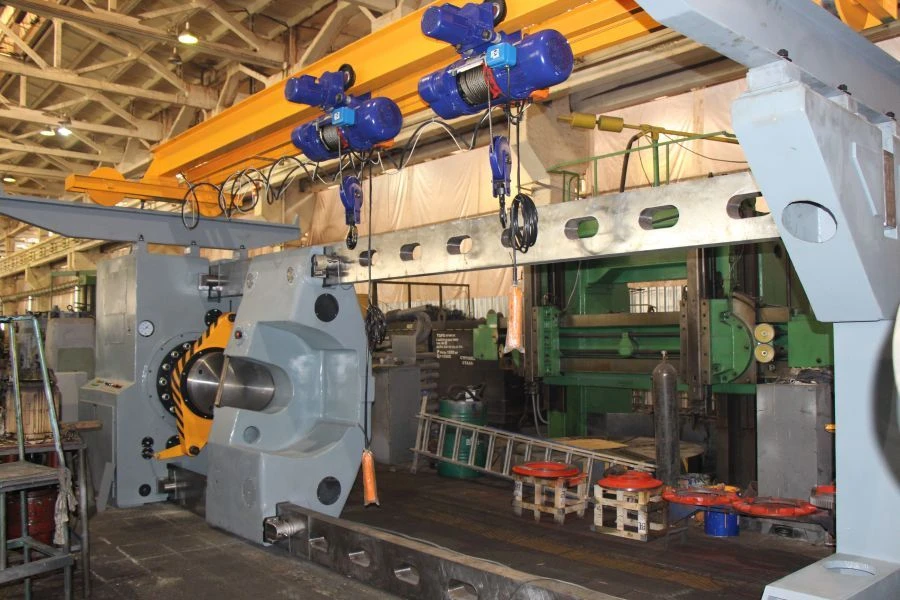

Press model PA6738 with 630 t.p.s. is designed for pressing and extrusion works. The press is a horizontal machine consisting of fixed left and right racks, connected by two rods, and a movable (thrust) crosshead. The working cylinder of the press is mounted in the left fixed post. Thanks to the movable crosshead, the P6738B press can be used for extrusion of parts of a wide range of lengths, without complex equipment changeover procedures and without the use of special tooling.

The support mechanism is used to align and hold the workpiece in the pressing (unpressing) area. Based on the dimensions of the selected workpiece, it is necessary to adjust the position of the brackets by turning the screw.

The mechanism consists of two carriages, adjusting screws and brackets. The carriages of the support mechanism can be positioned either at the front or at the rear of the movable crossbeam. The brackets can be fitted with an extension. The length of the extension is selectable...
