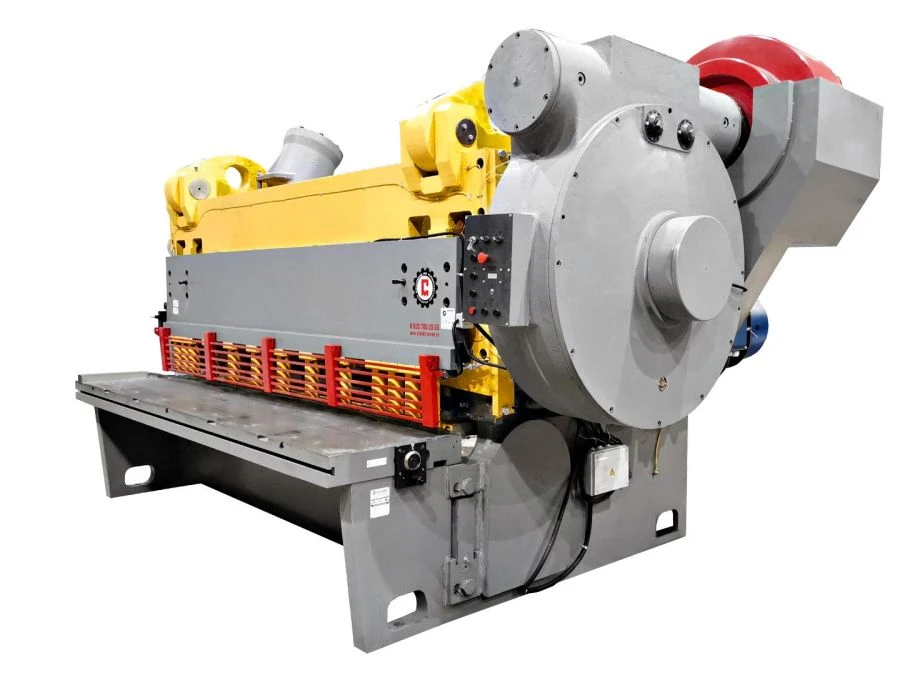

Hydraulic Guillotine Shears, Crank Type NA3225

Available for Import

Hydraulic Guillotine Shears NA3225 for Straight Metal Cutting

Metal Cutting Shears

Manufacturer: Promstroymash LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Shears crank sheet shears with an inclined knife 32x3150 mm model NA3225, are designed for straight cutting of metal in sheets and strips with a tensile strength s(vr) not more than 50 kg/mm2 at a thickness not more than 32 mm. The length of cut in one stroke does not exceed 3150 mm. Cutting of non-metallic sheet materials is also possible, excluding rapid blunting of cutting edges of knives and cracking of the cut workpiece.

Specifications

Type of product according to PP RF 616

Mechanical metalworking shears

Maximum cutting force

2195000

Weight

33950 kg

Length / width / height

5220 mm

Motor power

55 kW

Frequency of knife strokes, when cutting the largest dimensions of the metal to be cut

3.5

Frequency of knife strokes, idle

Length of sheet cut with stop

1000 mm

Width of cut sheets

3150 mm

Thickness of cut sheets with temporary resistance vr=450 MPa

32 mm
