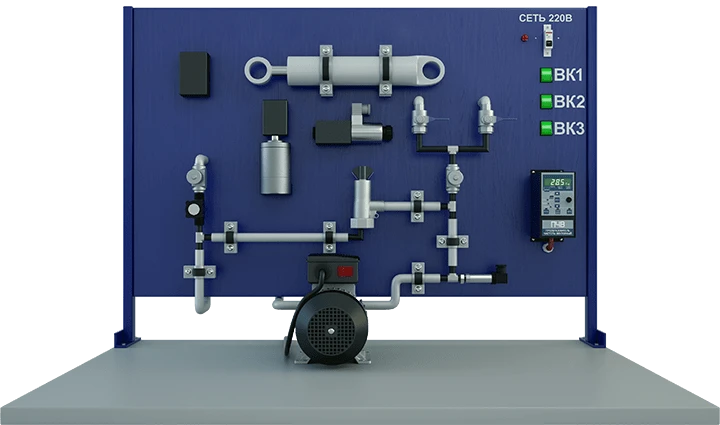

Hydraulic Laboratory Setup for Studying Pumps and Pipelines (GD-1)

Study of operation and characteristics of pumps, pipelines and stop valves. List of works to be carried out on the training stand: <ul> <li>- Study of flow regime and Bernoulli&#039;s equation.</li> </ul>Determination of head losses along the length. <ul> <li>- Construction of piezometric and pressure lines.</li> </ul>Determination of coefficient of hydraulic friction.

Testing of pumps Determination of flow rate and Reynolds number. <ul> <li>- Measurement of water flow rate using diaphragm</li> </ul>.
